Gauge Control Module Connector End View (View 310)
Gauge Control Module Connector End View (View 310)
GRY
Left Side of Dash
On Dashboard Wire Harness

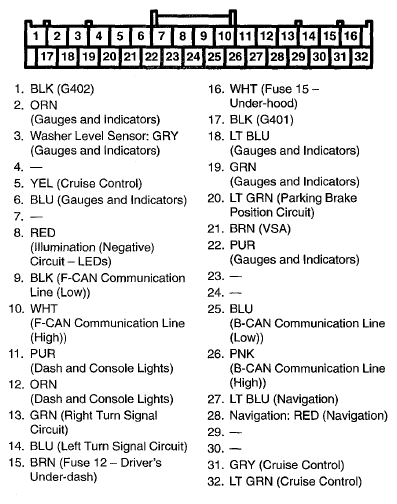

Fig 1: Gauge Control Module Connector Terminal (View 310)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
