Power Seat Control Unit Connector End View (View 341)

Under Driver's Seat
On Driver's Seat Wire Harness
Connector A
- GRY/WHT

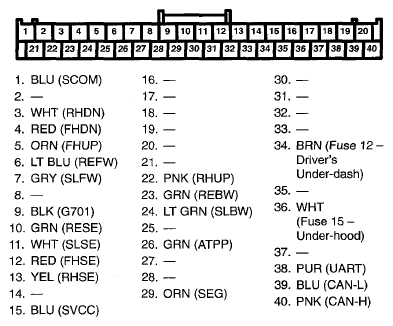

  Fig 1: Power Seat Control Unit Connector Terminal (Connector A) (View 341)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- GRY

  Fig 2: Power Seat Control Unit Connector Terminal (Connector B) (View 341)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
