Automatic Transmission
›
A/T Differential
›
Component Location Index
›
With SH-AWD
With SH-AWD

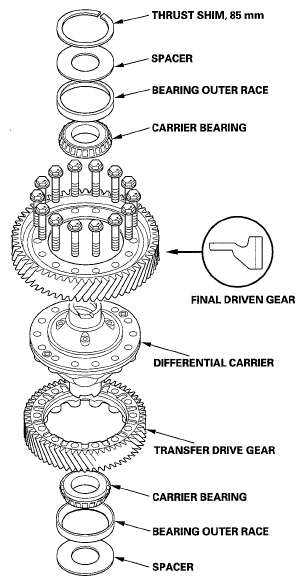

Fig 1: Identifying A/T Differential Component Location - With SH-AWD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Without SH-AWD

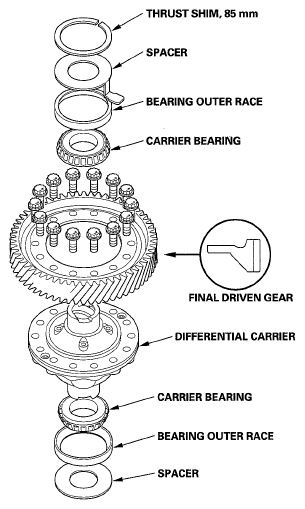

Fig 2: Identifying A/T Differential Component Location - Without SH-AWD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
