Automatic Transmission
›
System Description
›
Shift Lock System
›
Circuit Diagram - PCM A/T Control System
Circuit Diagram - PCM A/T Control System

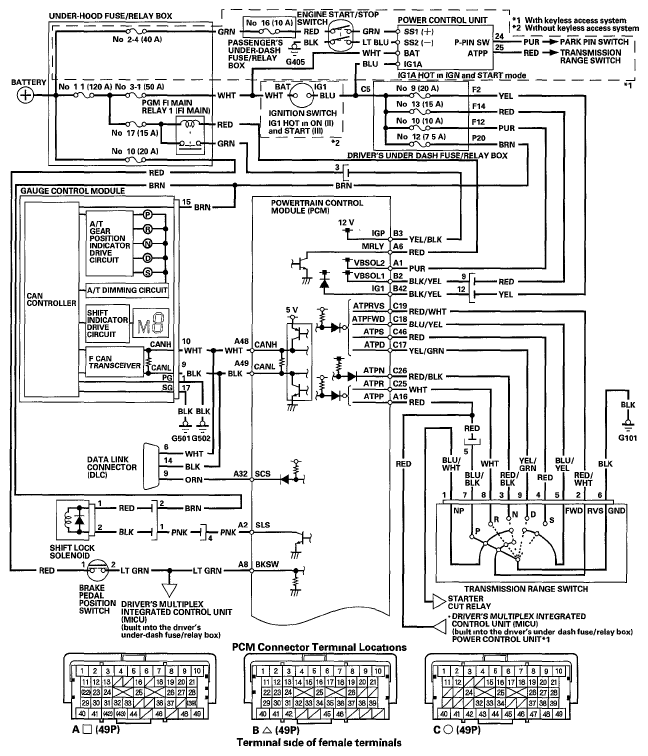

Fig 1: PCM A/T Control System - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

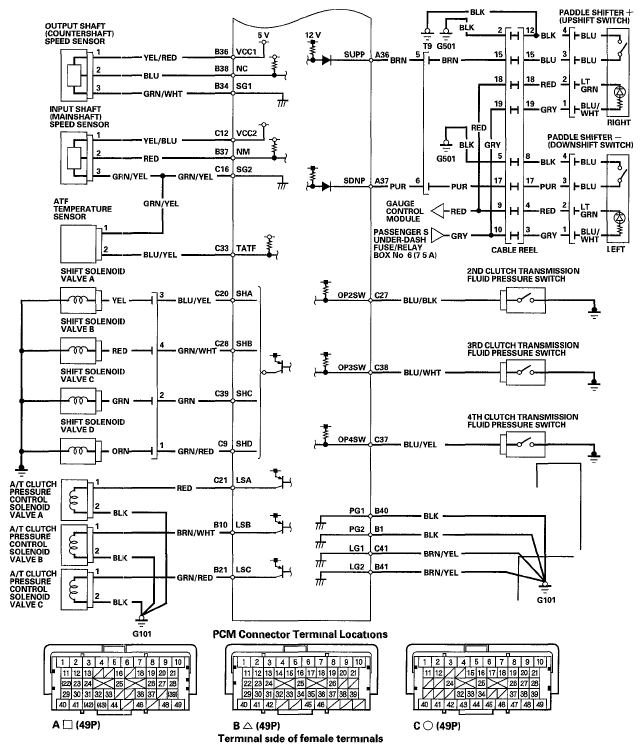

Fig 2: PCM A/T Control System - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
