DTC P050A: Cold Start Idle Air Control System Performance Problem: Notes

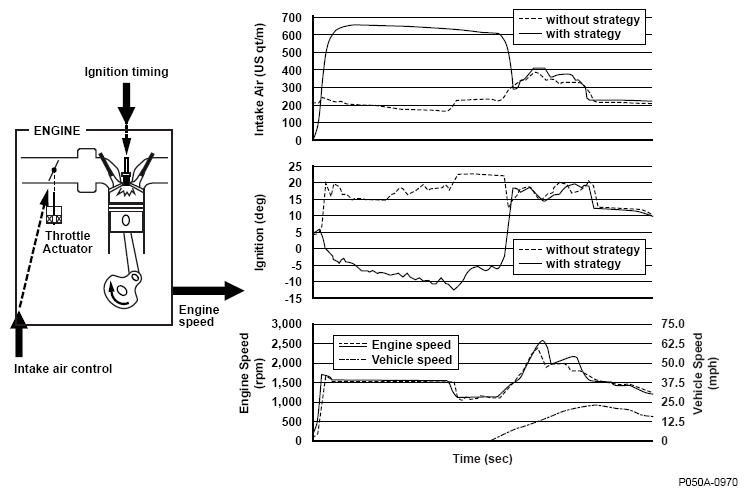

Fig 1: Cold Start Idle Air Control System Characteristics (1 Of 2)
G08572333
Fig 2: Cold Start Idle Air Control System Characteristics (2 Of 2)
G08572334


Fig 1: Cold Start Idle Air Control System Characteristics (1 Of 2)
G08572335
Fig 2: Cold Start Idle Air Control System Characteristics (2 Of 2)
G08572336
