System Description
›
System Diagram
›
Canada Models
Canada Models

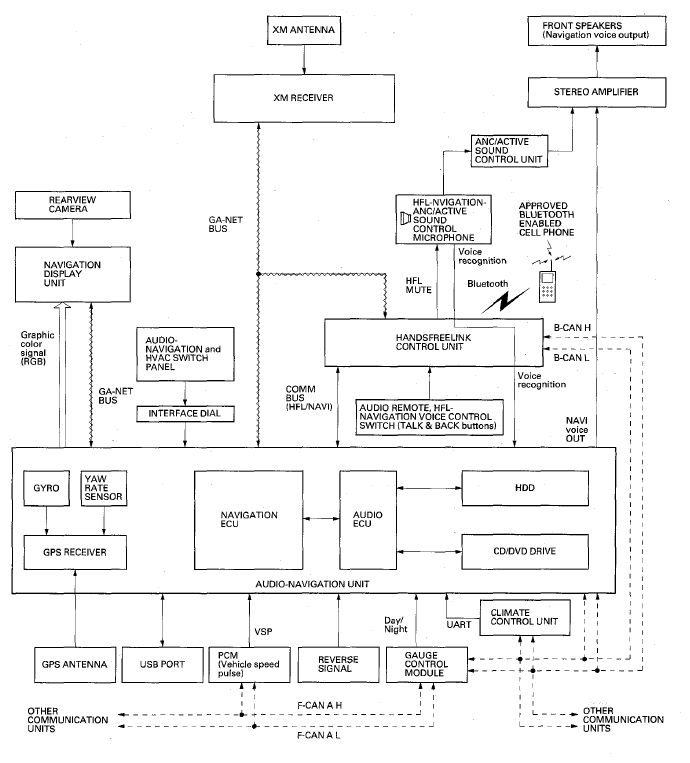

Fig 1: Navigation System Diagram - Canada Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
