System Description
›
System Diagram
›
USA Models
USA Models

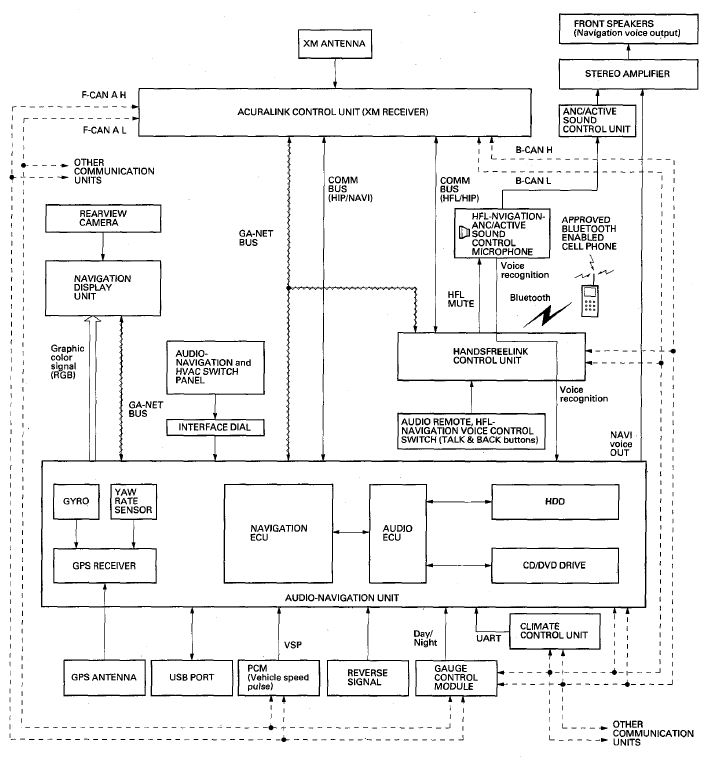

Fig 1: Navigation System Diagram - USA Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
