Circuit Diagram

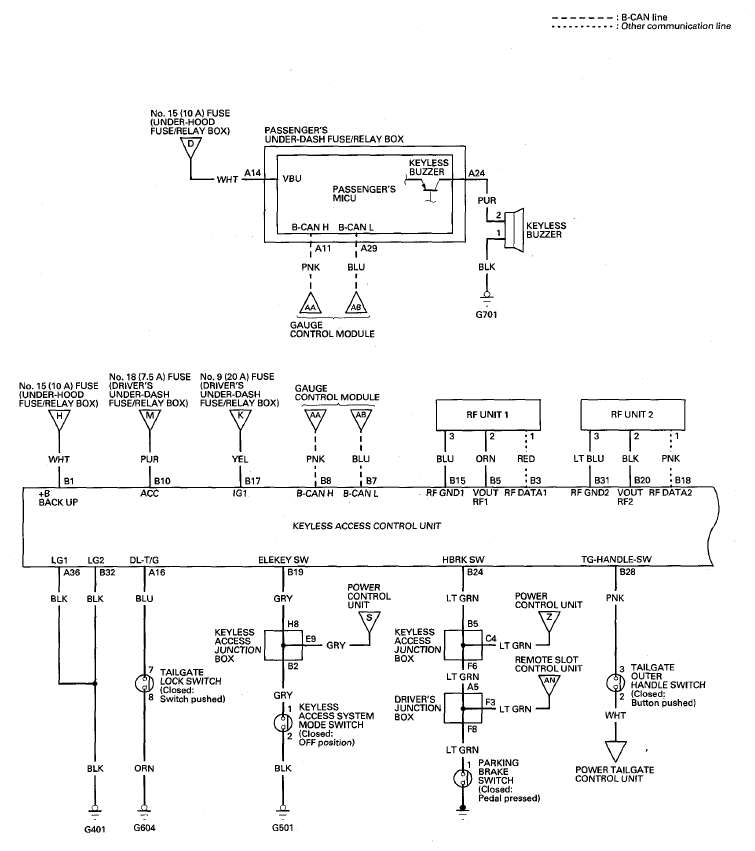

Fig 1: Keyless Access System Circuit Diagram (1 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

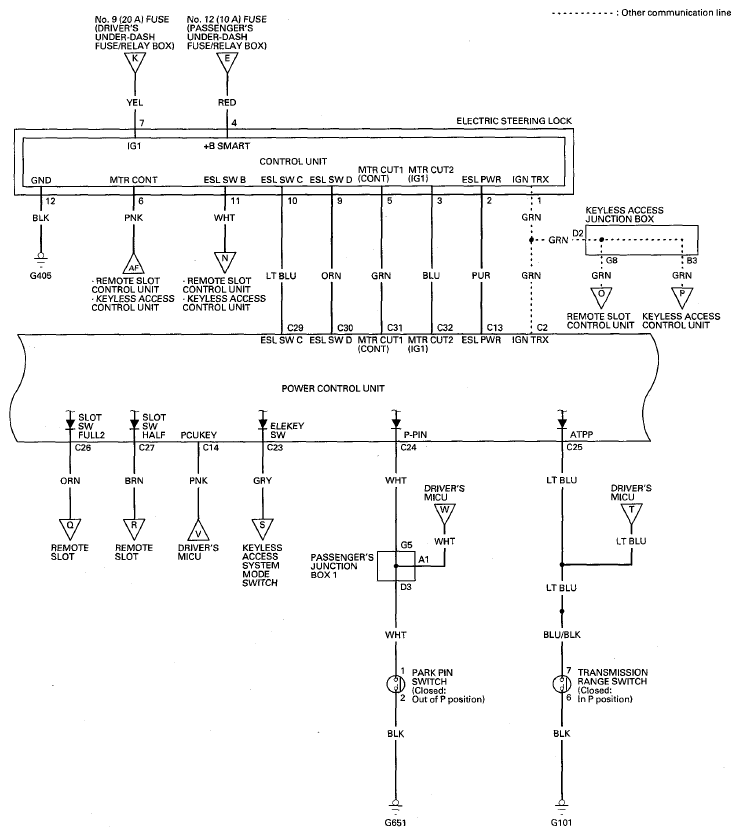

Fig 2: Keyless Access System Circuit Diagram (2 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

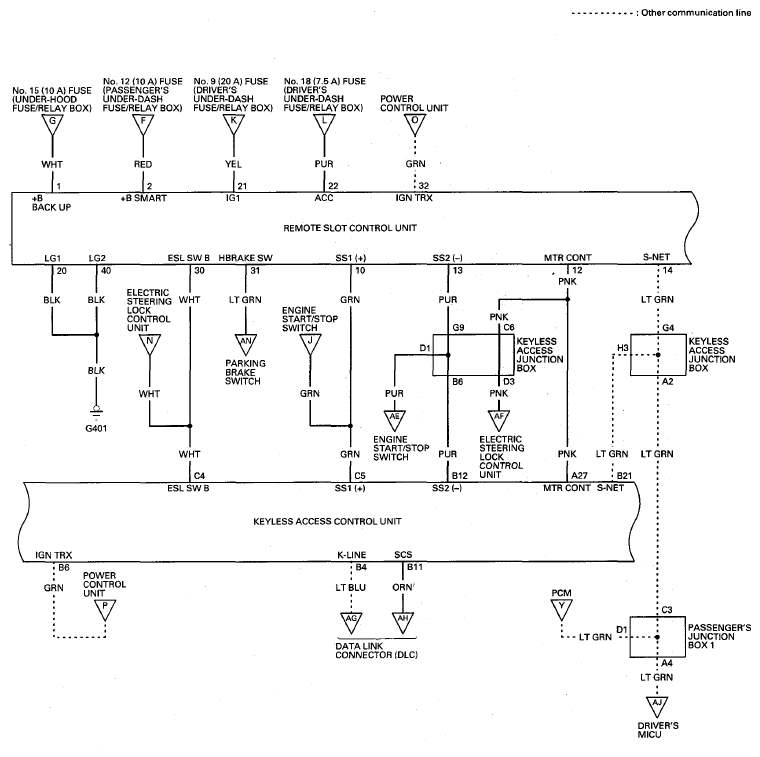

Fig 3: Keyless Access System Circuit Diagram (3 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

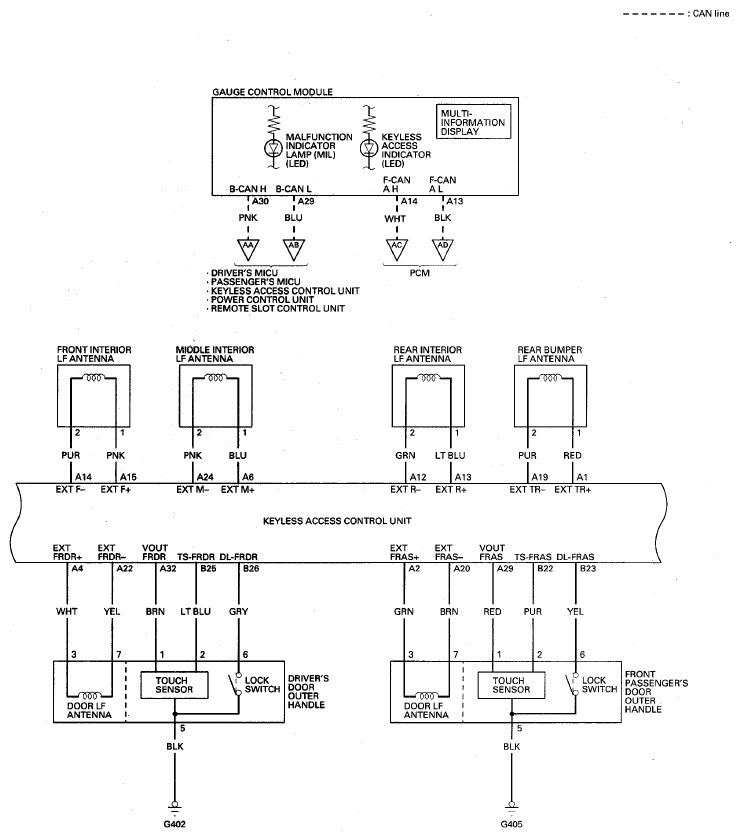

Fig 4: Keyless Access System Circuit Diagram (4 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

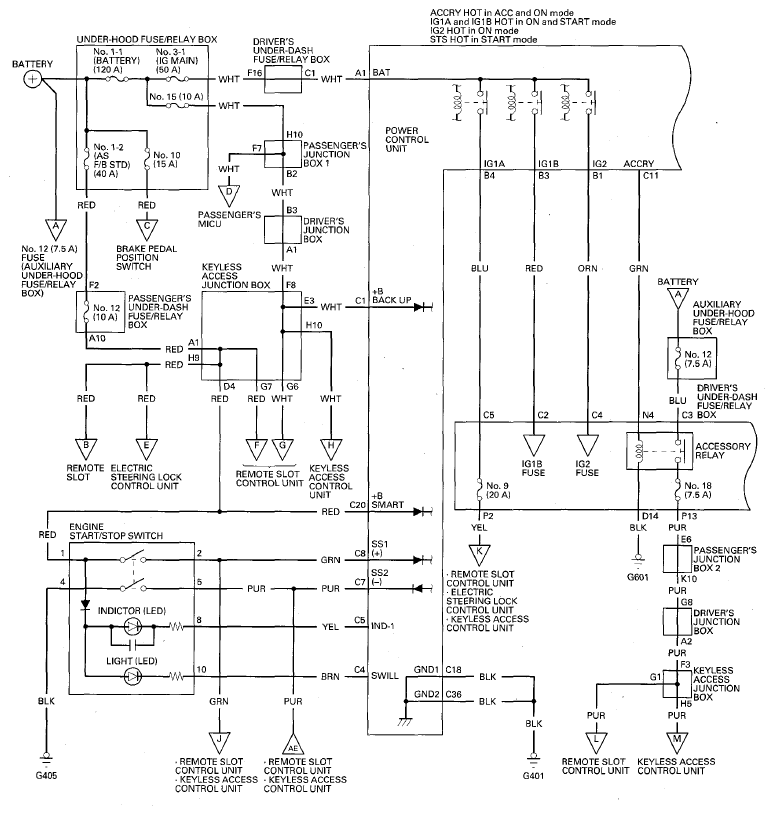

Fig 5: Keyless Access System Circuit Diagram (5 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

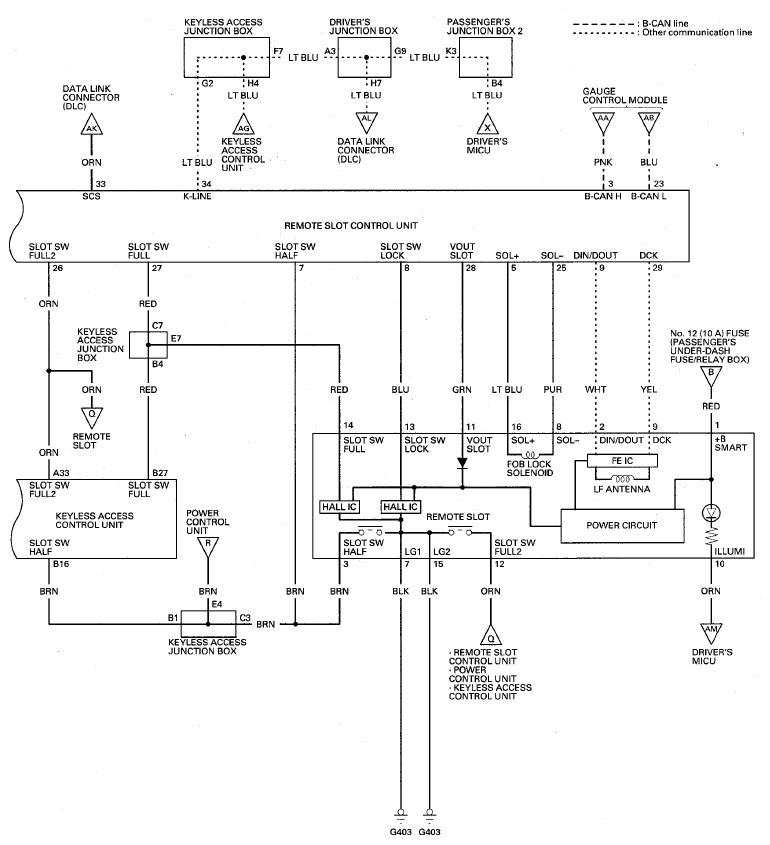

Fig 6: Keyless Access System Circuit Diagram (6 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

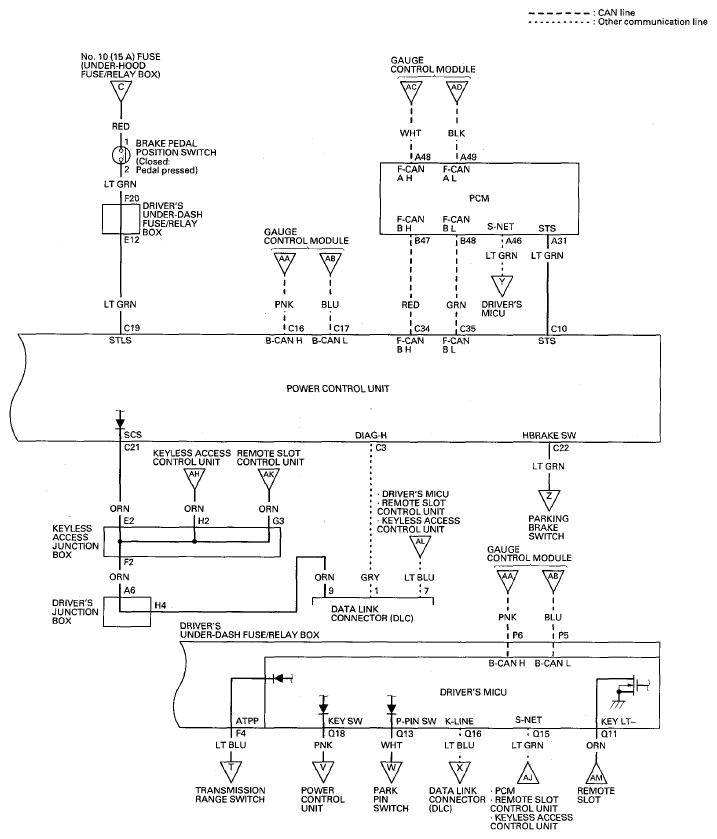

Fig 7: Keyless Access System Circuit Diagram (7 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
