Audio Remote Switch Replacement

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove these items:
   • Driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
   • Steering wheel (see STEERING WHEEL REMOVAL ).
   • Paddle shifter (see PADDLE SHIFTER REPLACEMENT ).
   • Distance switch (with ACC) (see ADAPTIVE CRUISE CONTROL (ACC) COMBINATION SWITCH/DISTANCE SWITCH REMOVAL/INSTALLATION ).
2. Remove the screws and the audio remote switch (A).

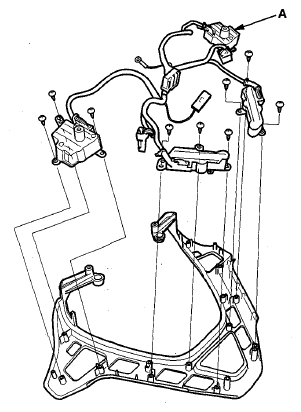

   Fig 1: Identifying Audio Remote Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the audio remote switch in the reverse order of removal.
