BSI OFF Switch Connector End View
BSI OFF Switch Connector End View

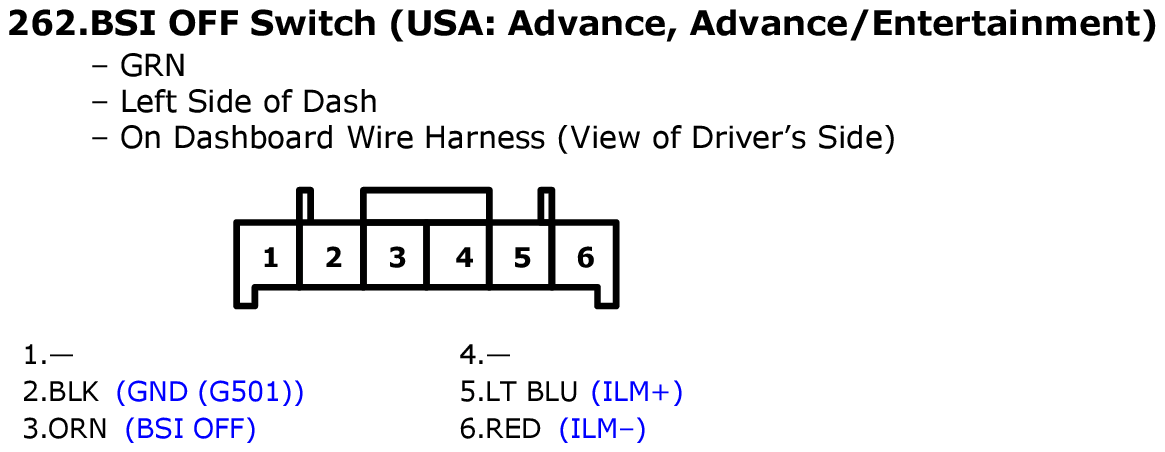

Fig 1: BSI OFF Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
