C703 Connector End View
C703 Connector End View

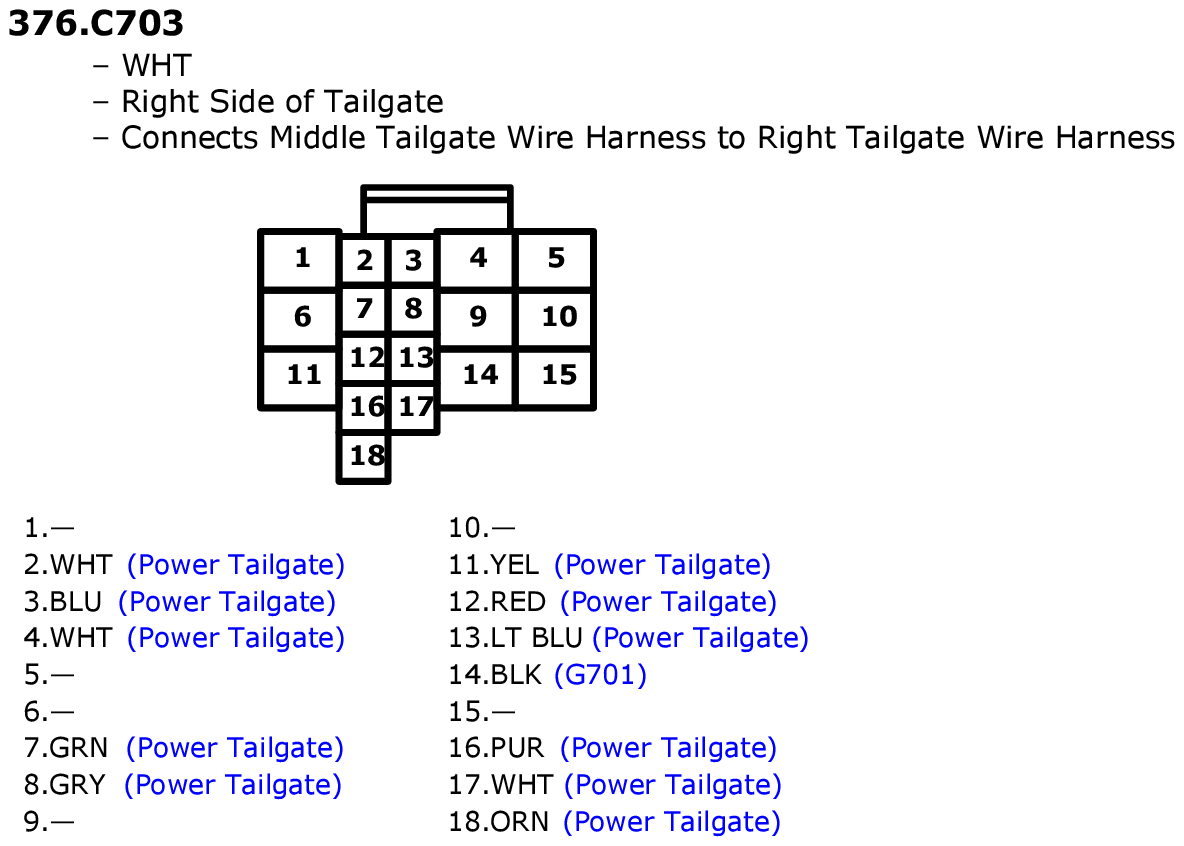

Fig 1: C703 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
