CKP Sensor Connector End View
CKP Sensor Connector End View

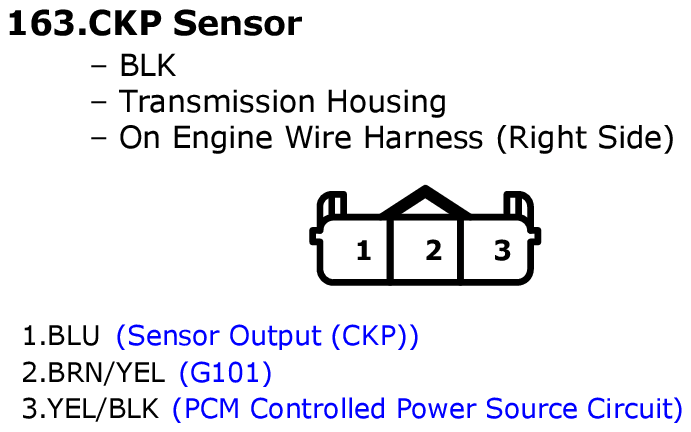

Fig 1: CKP Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
