Driver's MPCS Unit Connector End View
Driver's MPCS Unit Connector End View

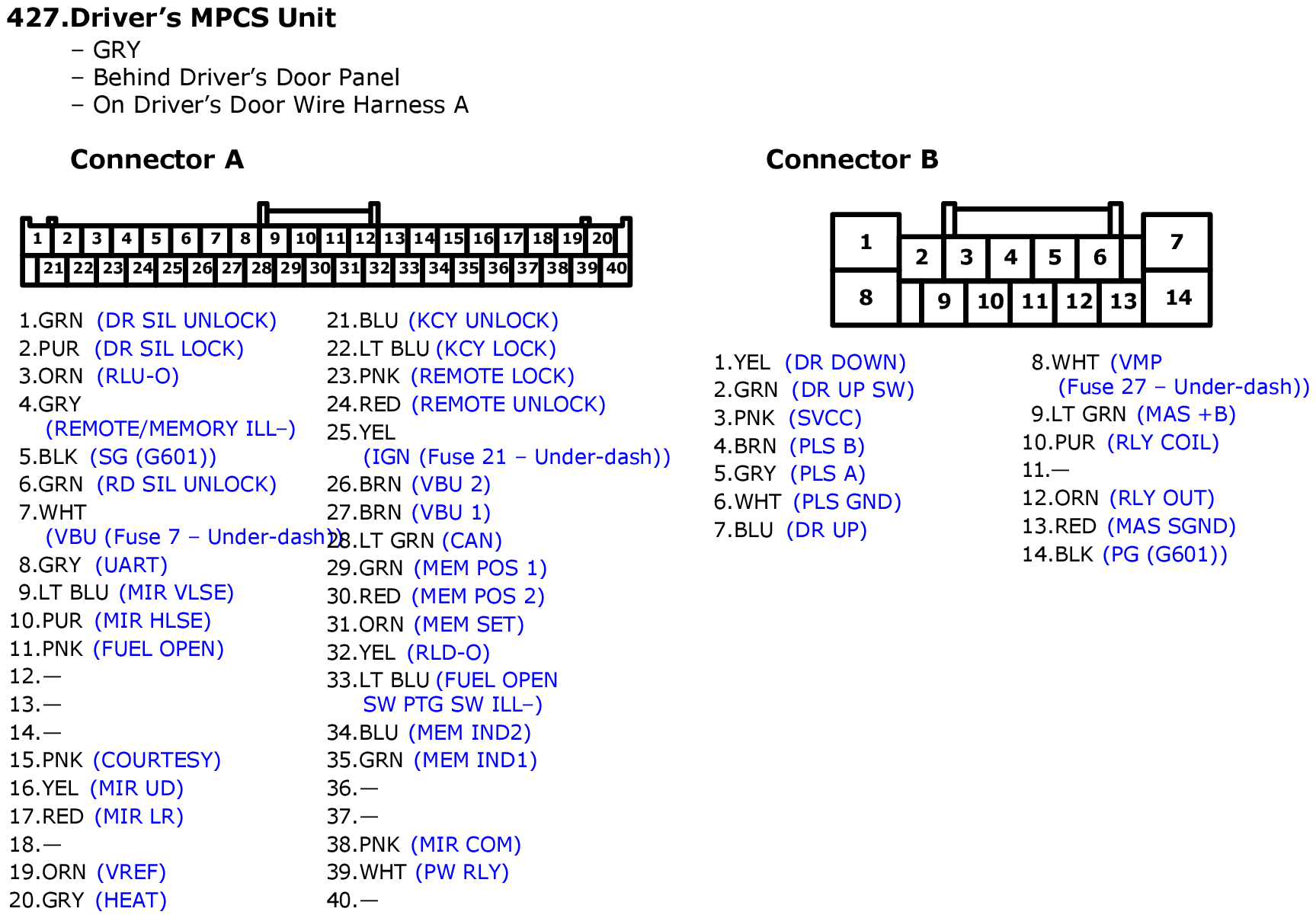

Fig 1: Driver's MPCS Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
