Electrical Compass Unit (Base) Connector End View
Electrical Compass Unit (Base) Connector End View

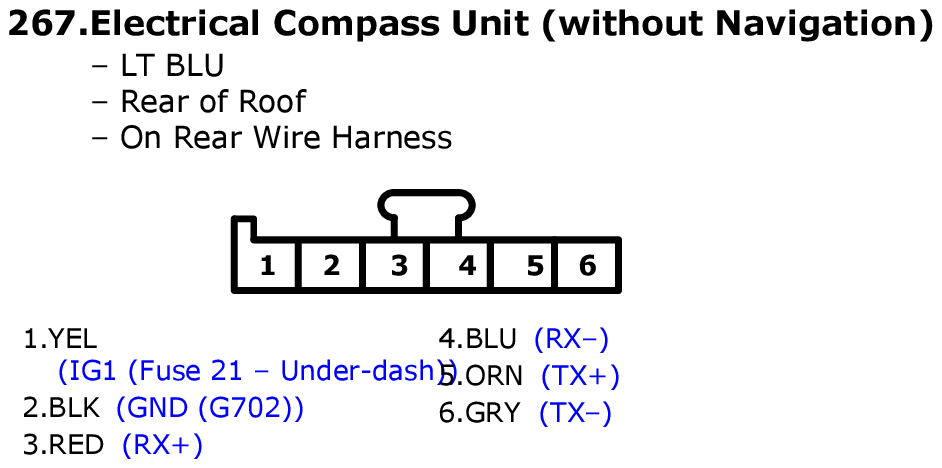

Fig 1: Electrical Compass Unit (Base) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
