Front Blower Power Transistor Connector End View
Front Blower Power Transistor Connector End View

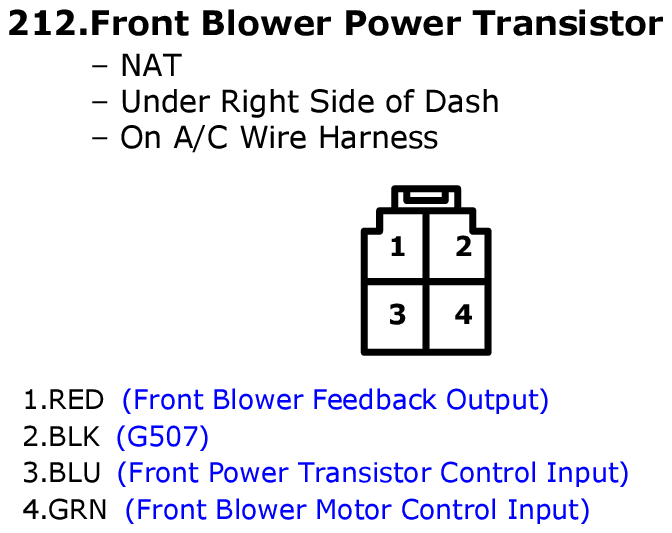

Fig 1: Front Blower Power Transistor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
