Immobilizer-Keyless Control Unit Connector End View
Immobilizer-Keyless Control Unit Connector End View

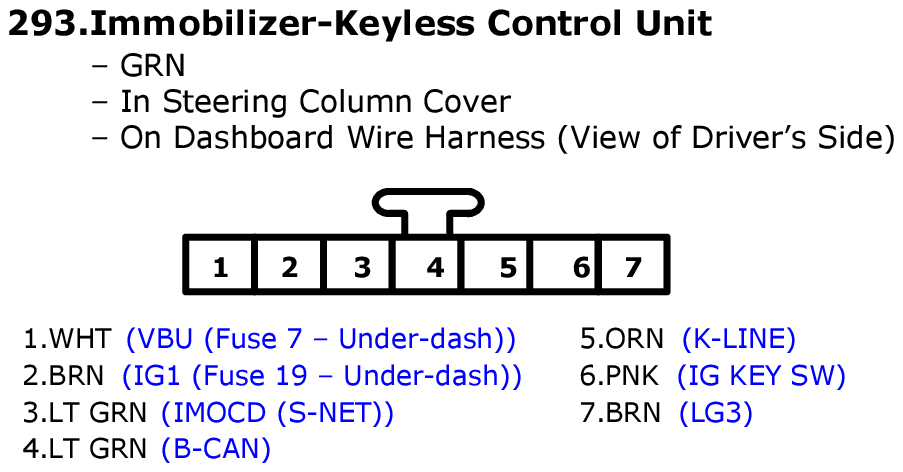

Fig 1: Immobilizer-Keyless Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
