Interface Dial (except Base) Connector End View
Interface Dial (except Base) Connector End View

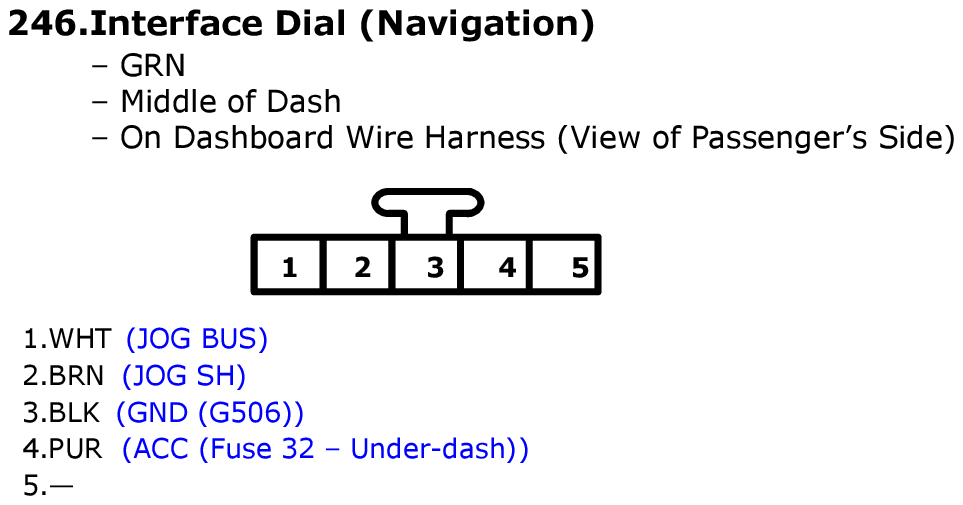

Fig 1: Interface Dial (except Base) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
