Left BSI Radar Unit
Left BSI Radar Unit

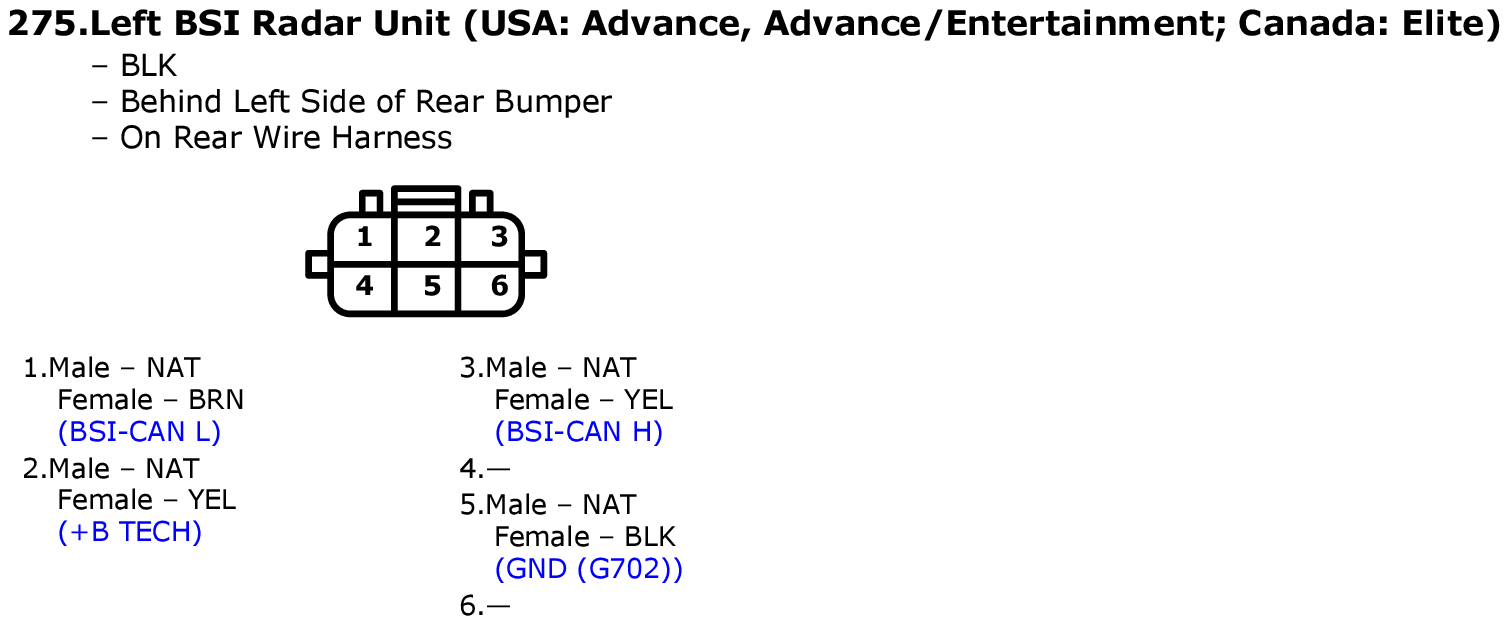

Fig 1: Left BSI Radar Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
