MAF/IAT Sensor Connector End View
MAF/IAT Sensor Connector End View

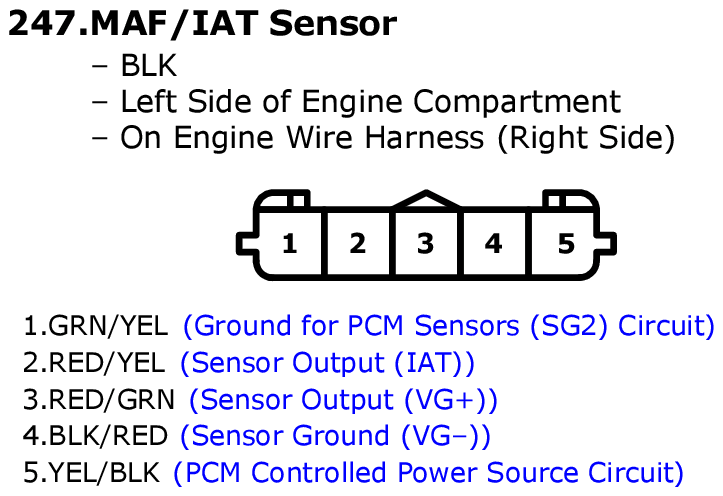

Fig 1: MAF/IAT Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
