MAP Sensor Connector End View
MAP Sensor Connector End View

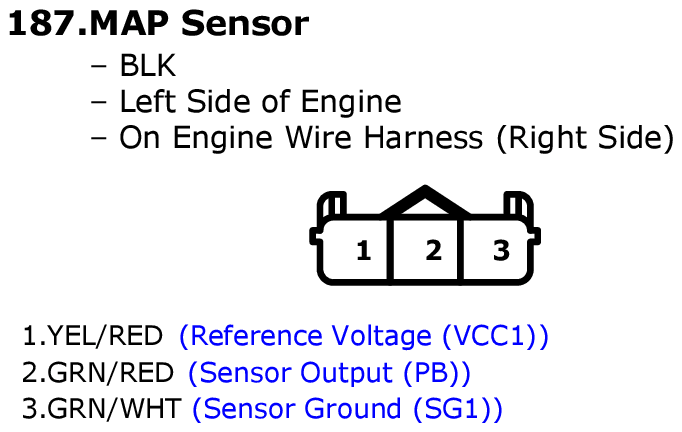

Fig 1: MAP Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
