Connector End Views
›
PCM Connector End View
PCM Connector End View

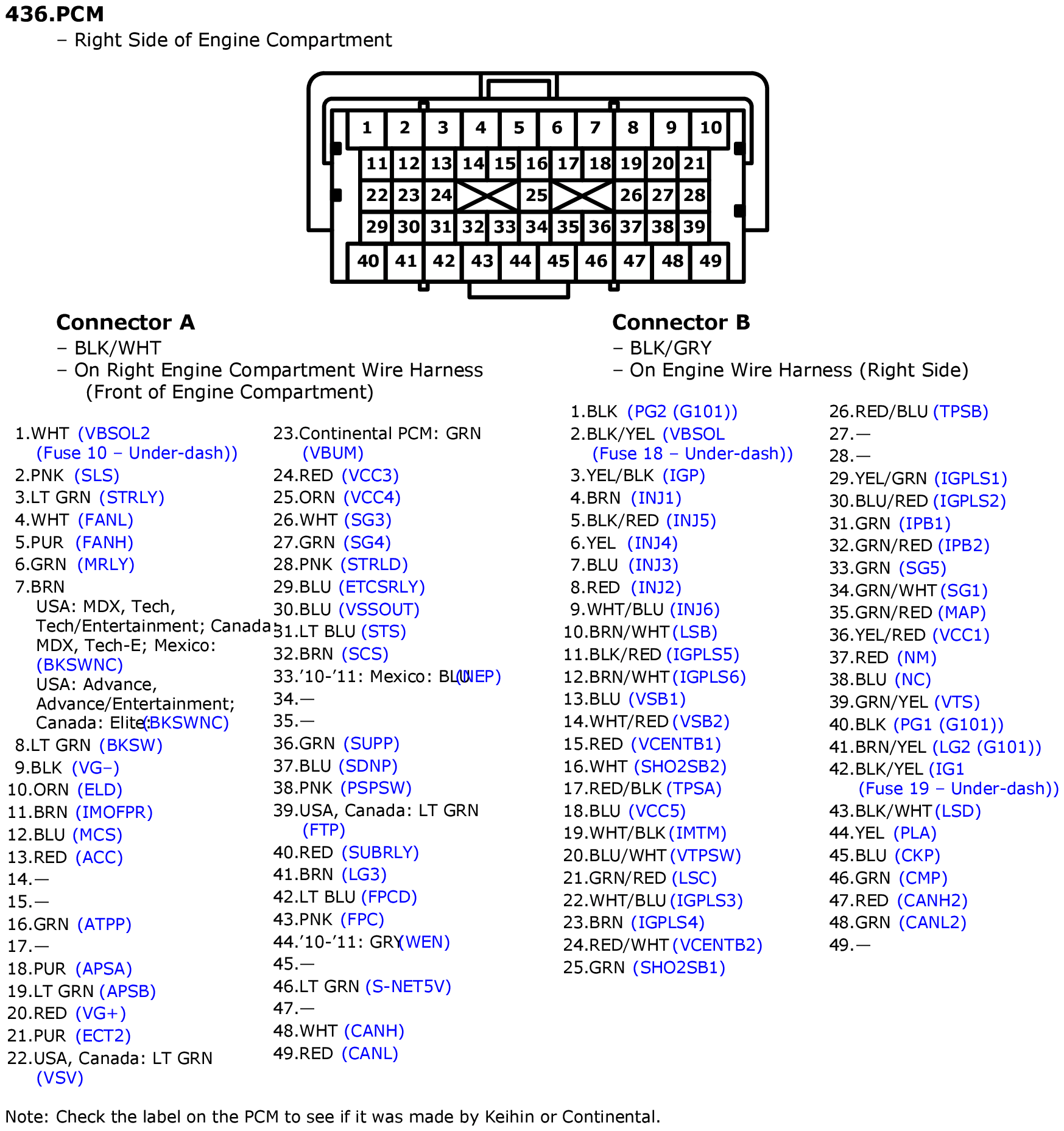

Fig 1: PCM Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
