Power Telescopic Motor/Position Sensor Connector End View
Power Telescopic Motor/Position Sensor Connector End View

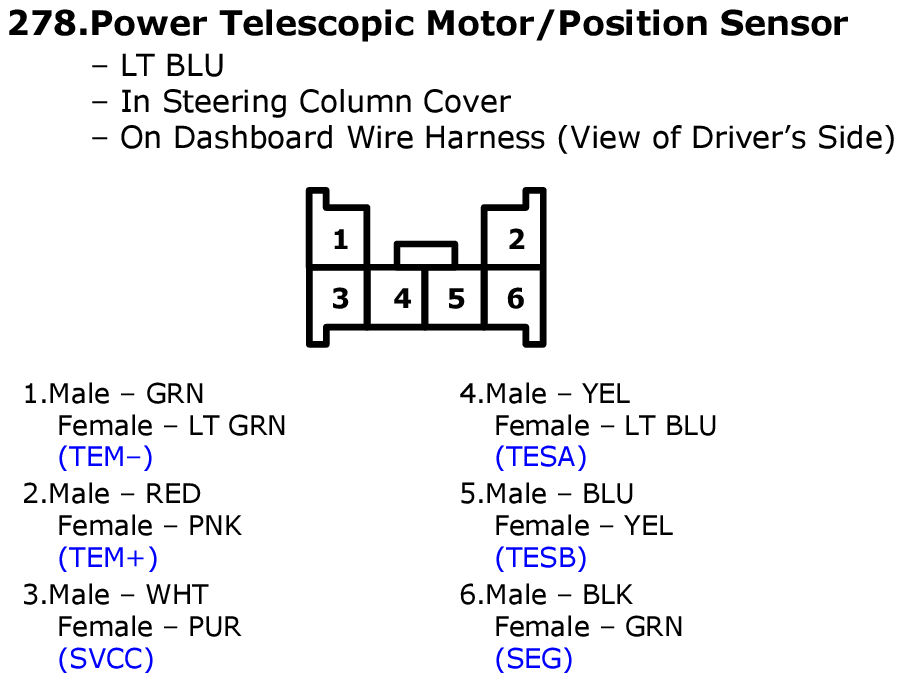

Fig 1: Power Telescopic Motor/Position Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
