Rear Climate Control Panel Connector End View
Rear Climate Control Panel Connector End View

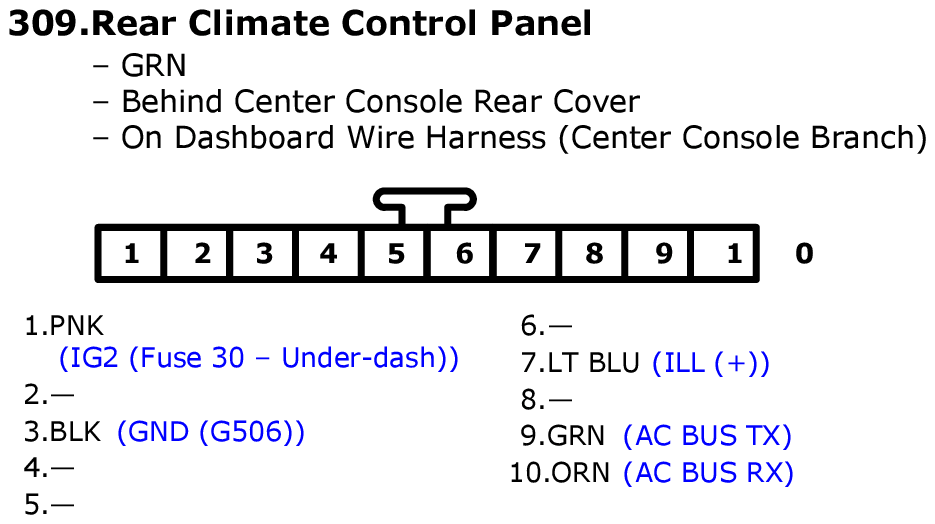

Fig 1: Rear Climate Control Panel Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
