Rear Controller and Screen Connector End View
Rear Controller and Screen Connector End View

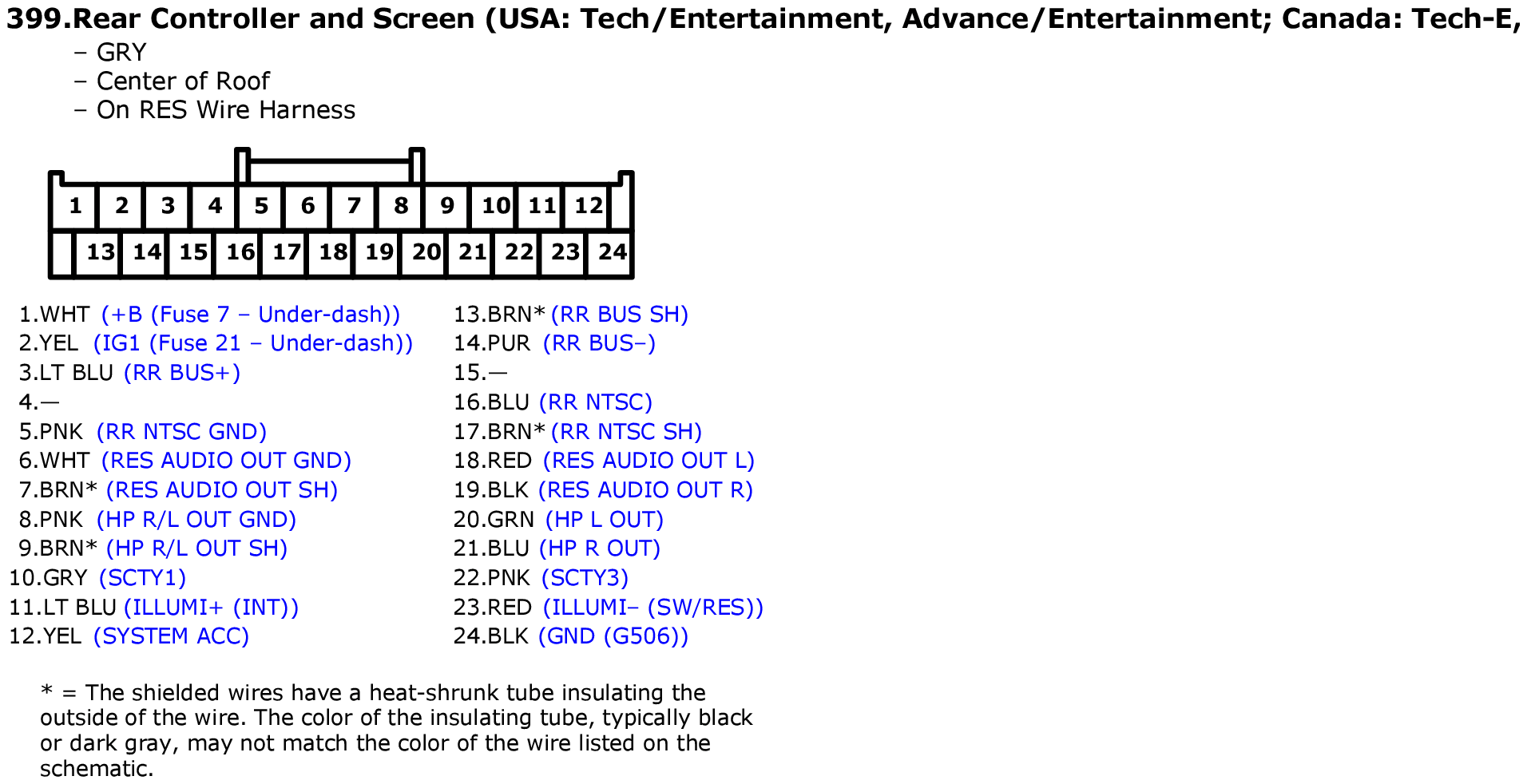

Fig 1: Rear Controller and Screen Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
