Rear Fuse/Relay Box Connector End View
Rear Fuse/Relay Box Connector End View

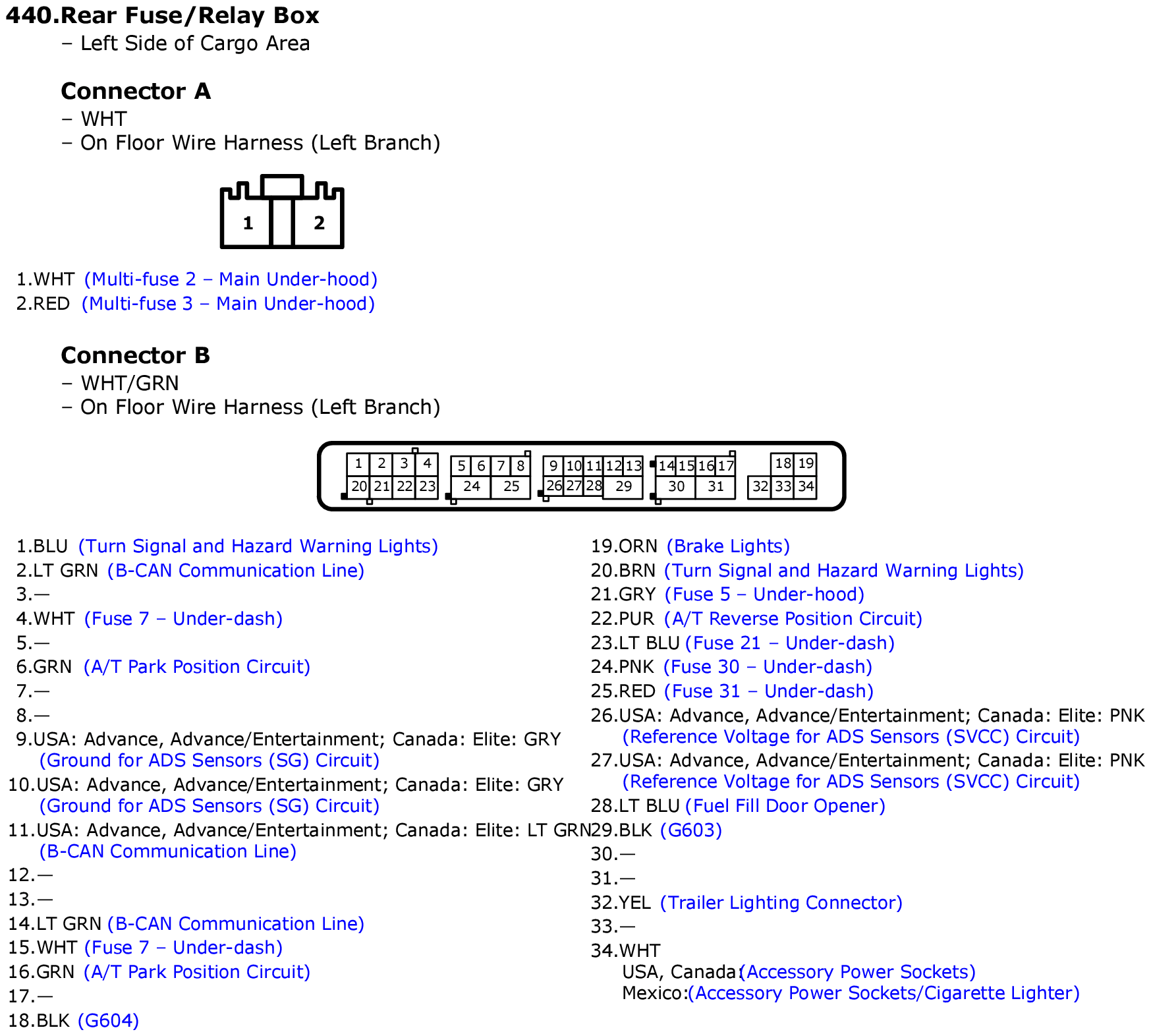

Fig 1: Rear Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
