Steering Angle Sensor Connector End View
Steering Angle Sensor Connector End View

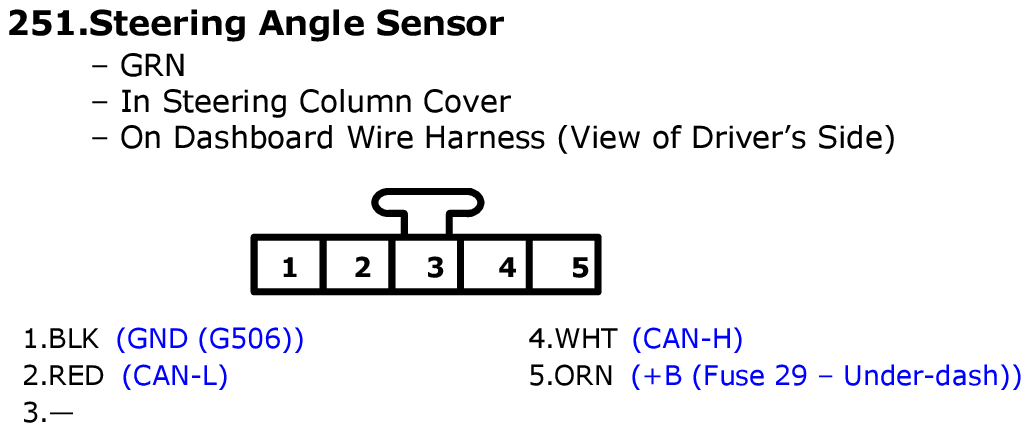

Fig 1: Steering Angle Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
