Center Console Panel Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the console.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the center console latch panel (see CENTER CONSOLE LATCH PANEL REMOVAL/INSTALLATION ).

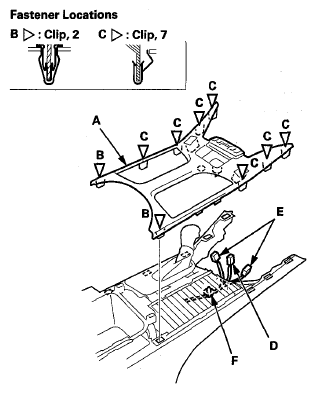

Pull the center console panel (A) out to detach the clips (B, C). Disconnect the accessory power socket connector (D) and seat heater switch connectors, or the seat ventilation switch connectors (E), detach the harness clip (F), then remove the panel.

Fig 1: Identifying Center Console Panel And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
