Exploded View

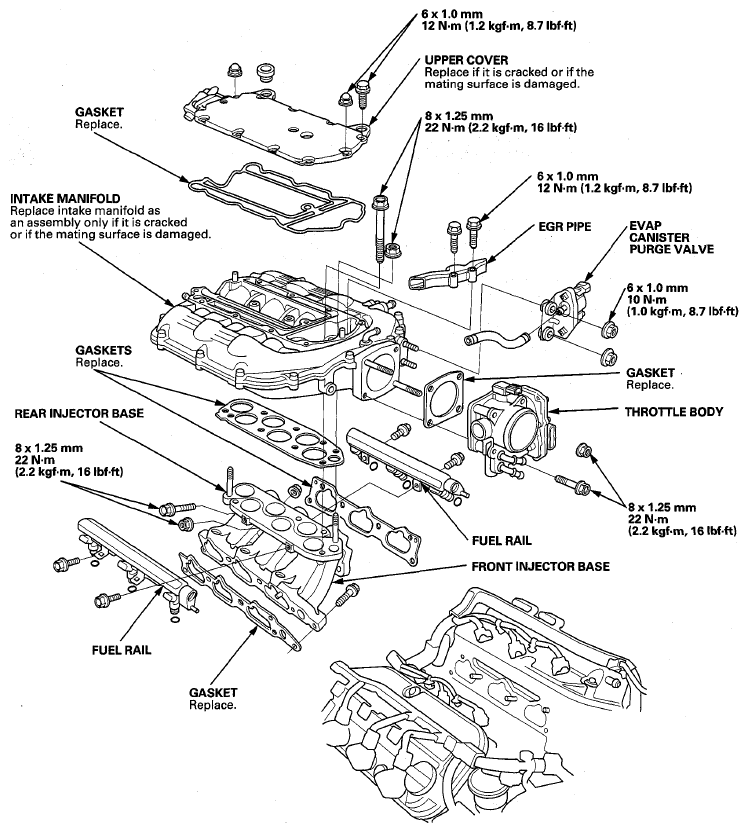

Fig 1: Exploded View Of Intake Manifold
G08052363Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the EXPLODED VIEW  if needed during this procedure.
