IMT Actuator Replacement

  1. Remove the engine cover (see step 6 under ENGINE REMOVAL ).
  2. Disconnect the IMT actuator 5P connector (A).

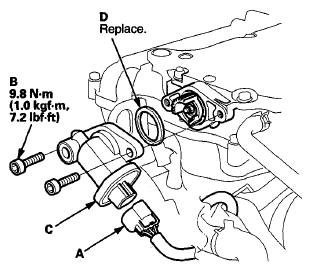

    Fig 1: Identifying IMT Actuator 5P Connector, IMT Actuator And Bolts
    G08052614Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the IMT actuator (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
