Rear Bank (Bank 1)

Disconnect the rear A/F sensor 6P connector (A), then remove the rear A/F sensor (B).

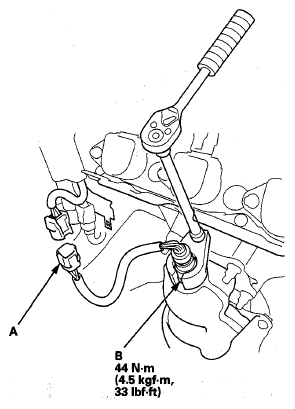

Fig 1: Identifying Rear A/F Sensor 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
