System Description
›
Navigation Function
›
Function Diagram
Function Diagram

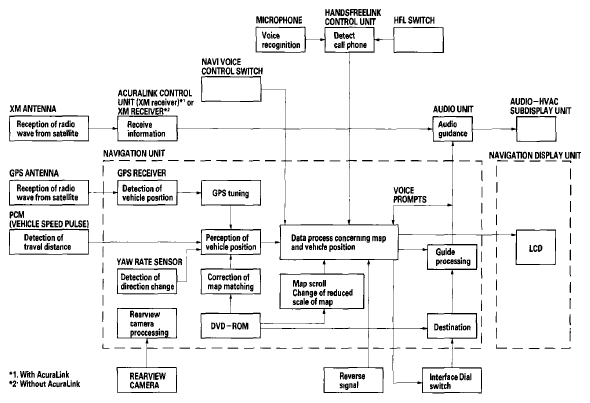

Fig 1: Navigation System - Function Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
