Component Location Index

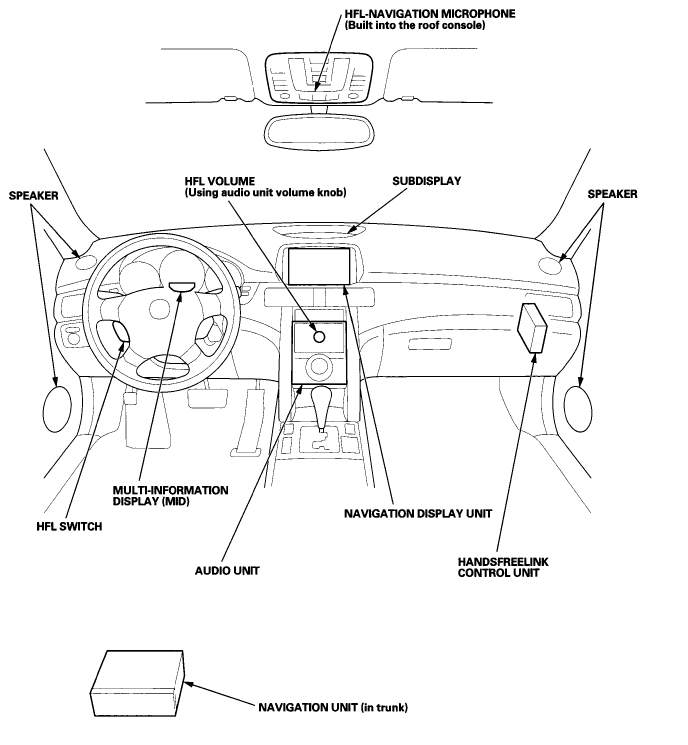

Fig 1: Identifying Handsfreelink System Components Location
G07364048Courtesy of AMERICAN HONDA MOTOR CO., INC.
