HomeLink Unit Replacement

Remove the roof console (see ROOF CONSOLE REPLACEMENT ).
Disconnect the connector (A) from the HomeLink unit (B).

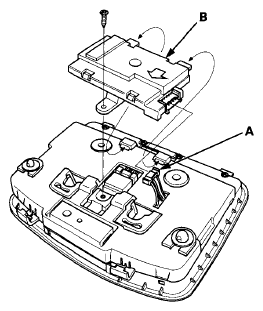

Fig 1: Disconnecting Connector From Homelink Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw and HomeLink unit.
Install the parts in the reverse order of removal.
