Component Location Index

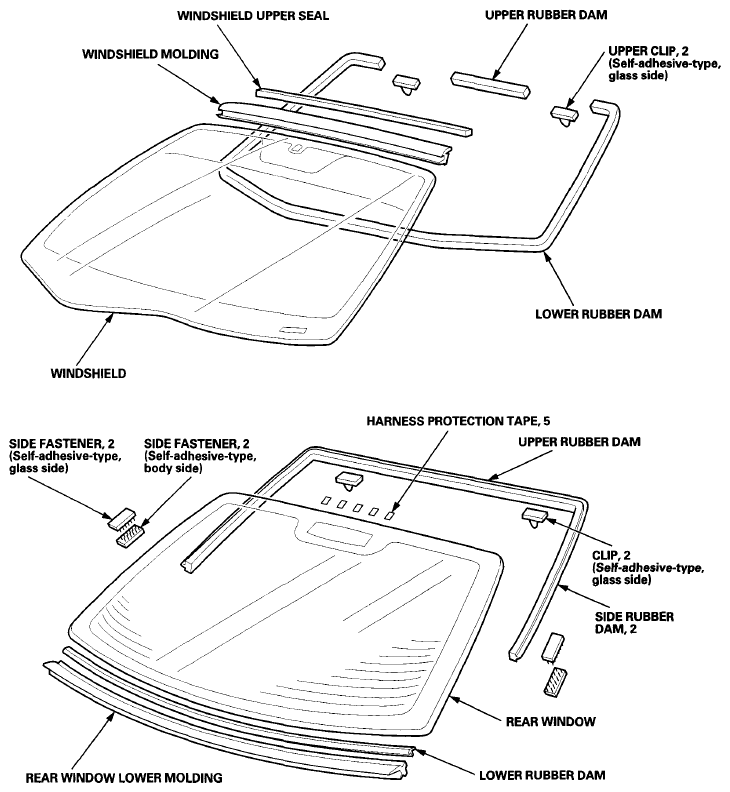

Fig 1: Identifying Glass Components
G07354333Courtesy of AMERICAN HONDA MOTOR CO., INC.
