Audio System: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

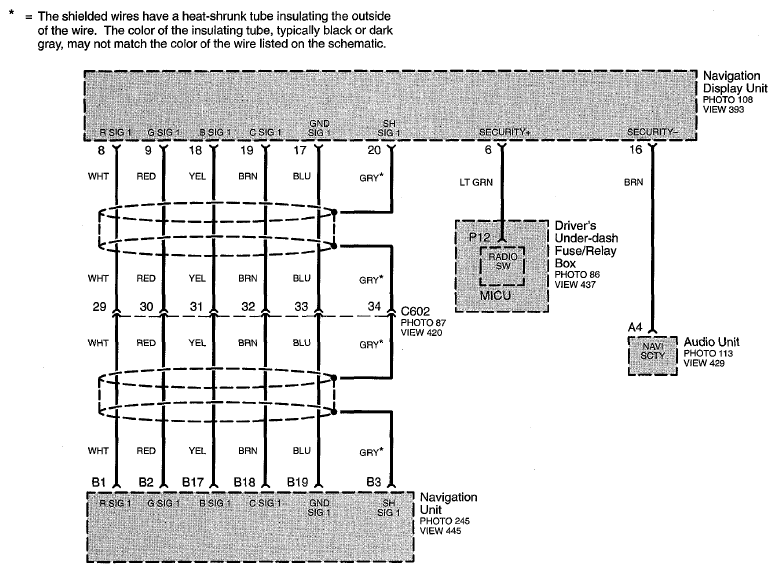

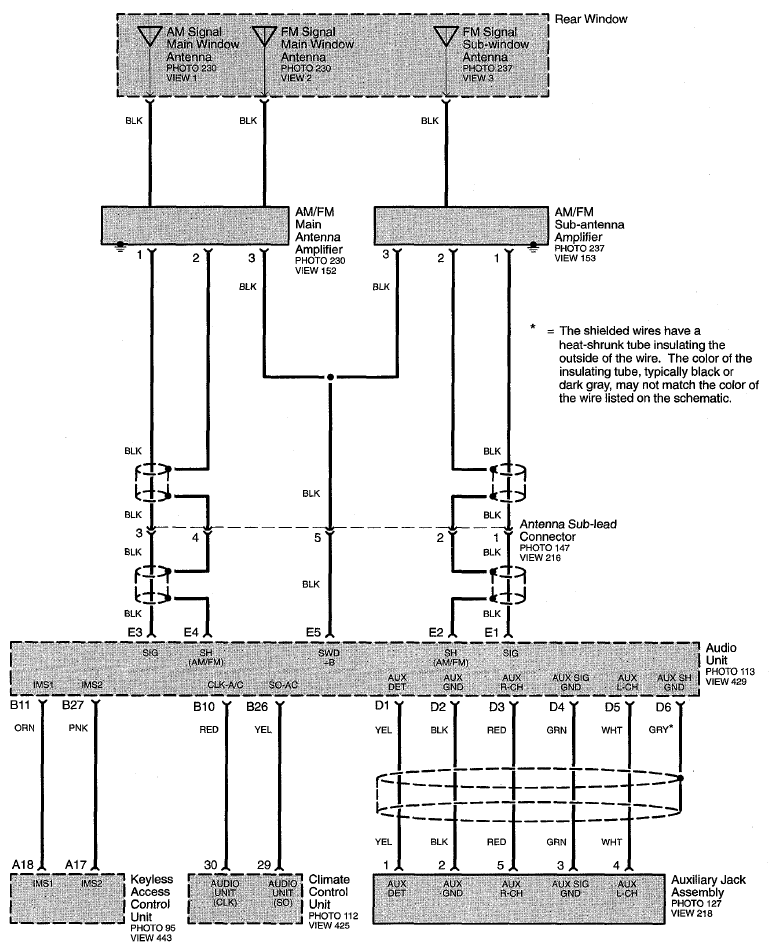

Fig 1: Audio System Circuit Diagram (Page 150)

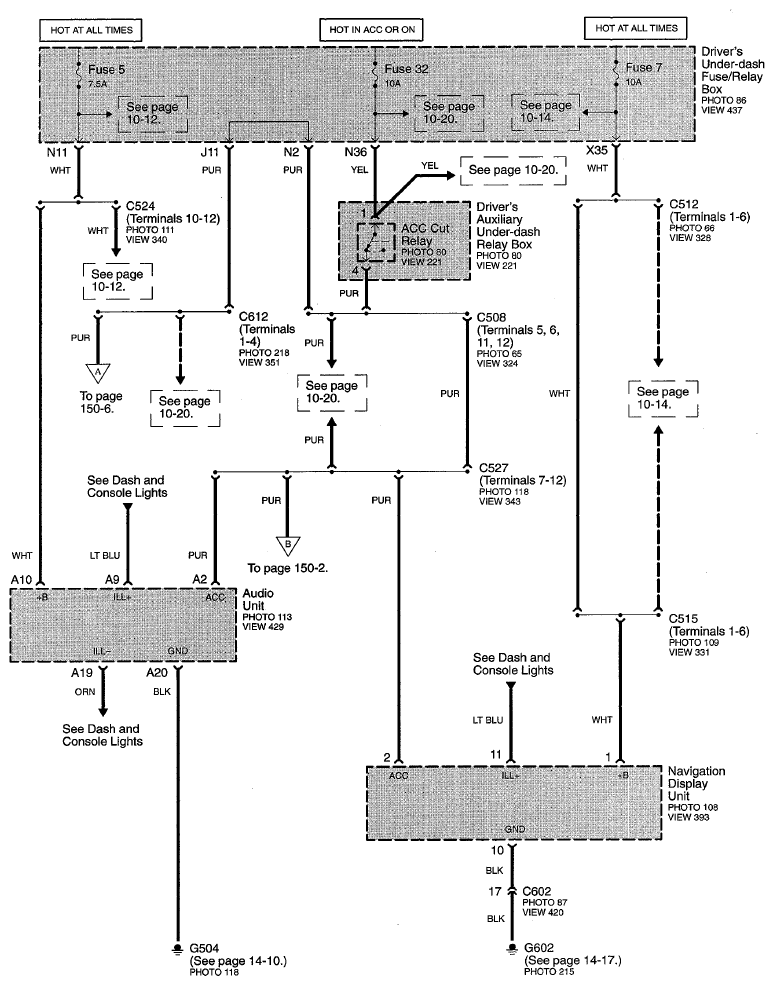

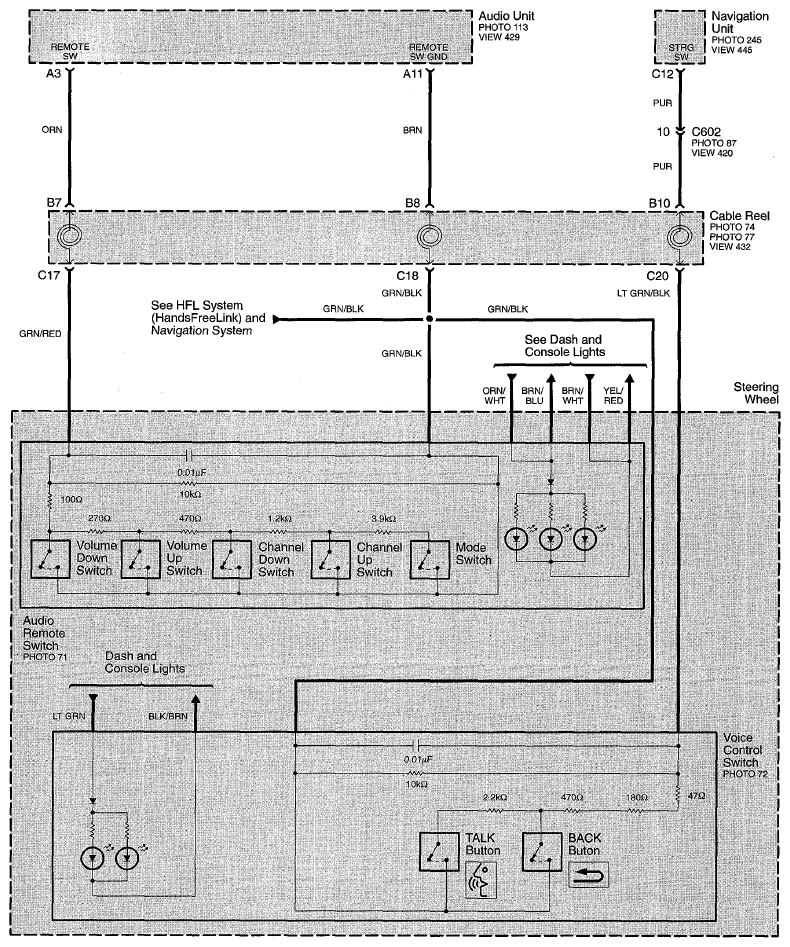

Fig 2: Audio System Circuit Diagram (Page 150-1)

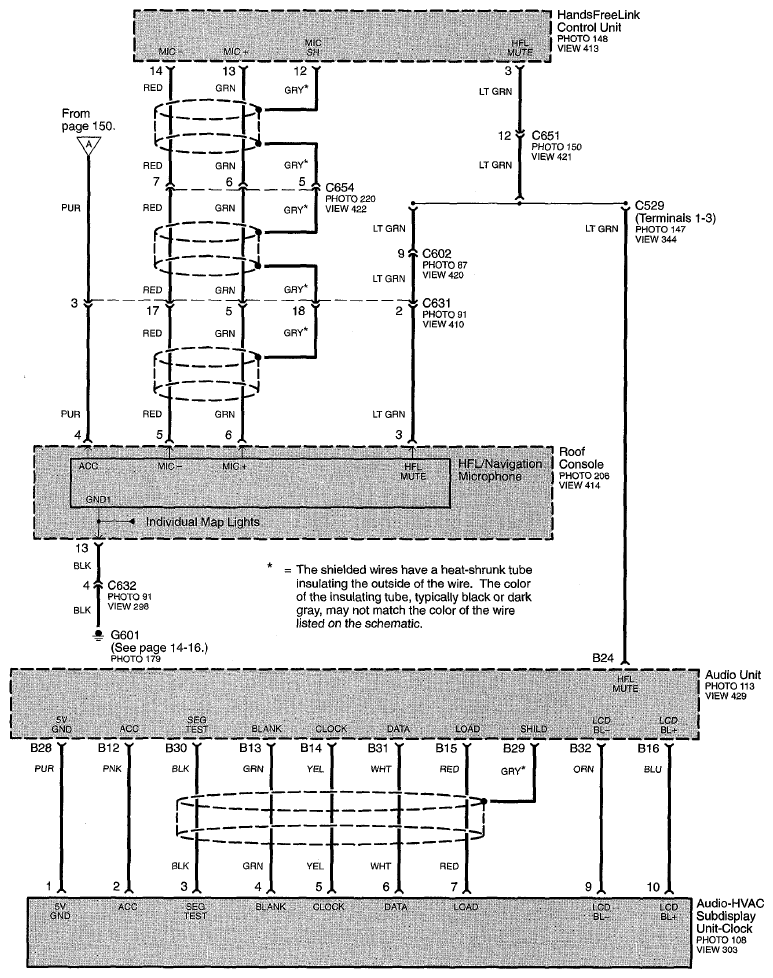

Fig 3: Audio System Circuit Diagram (Page 150-2)

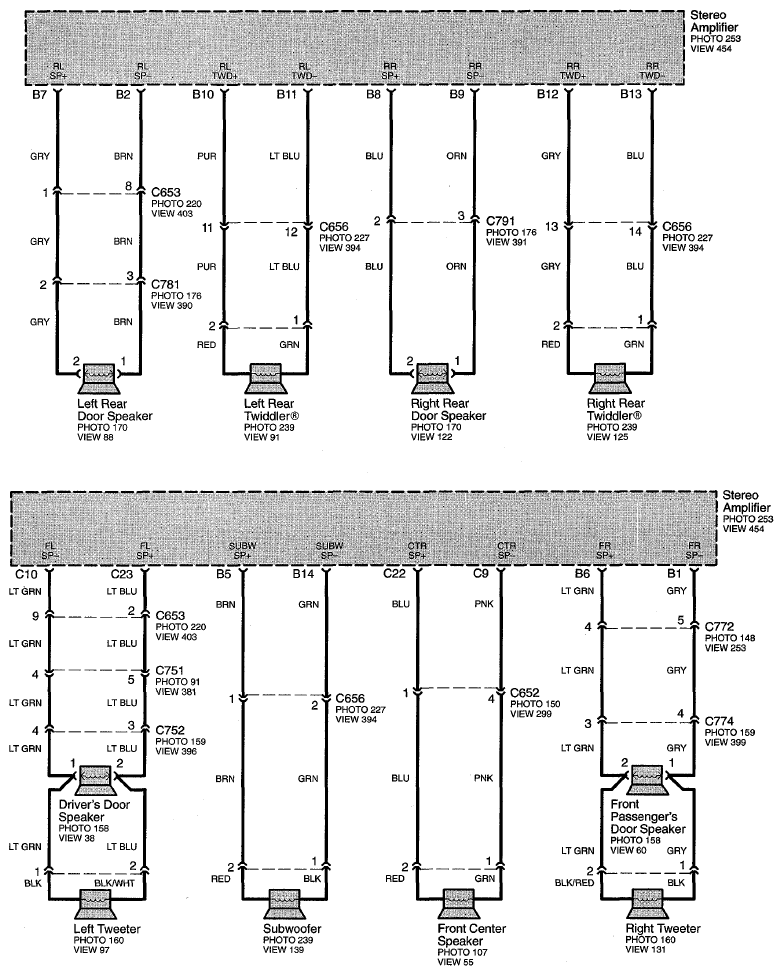

Fig 4: Audio System Circuit Diagram (Page 150-3)

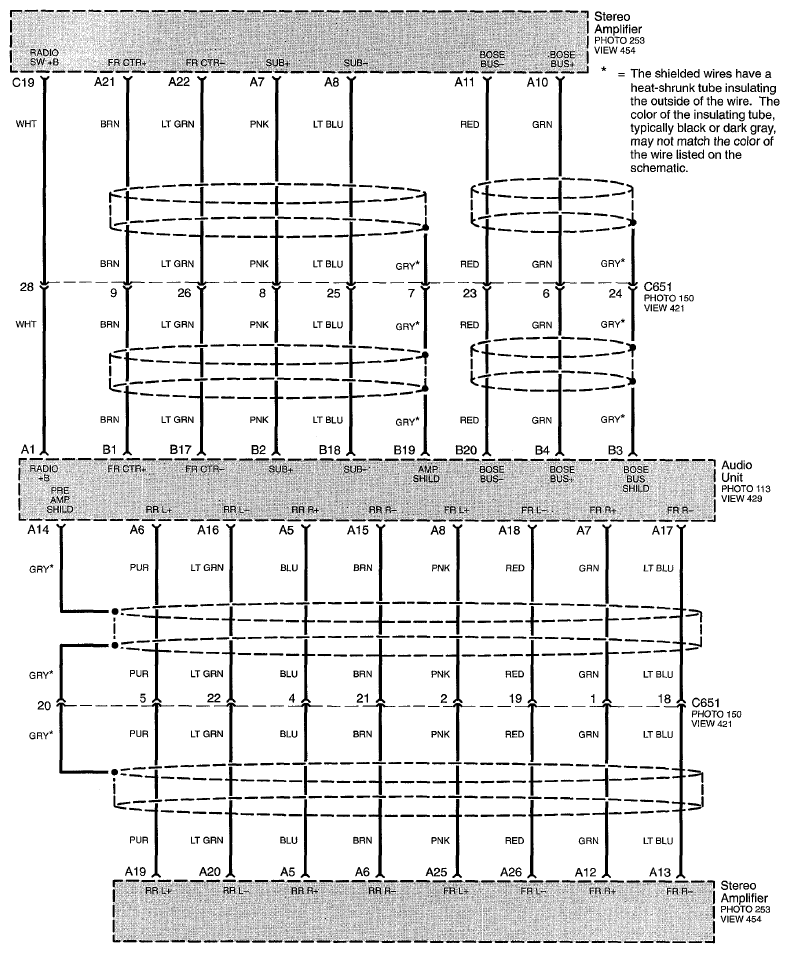

Fig 5: Audio System Circuit Diagram (Page 150-4)

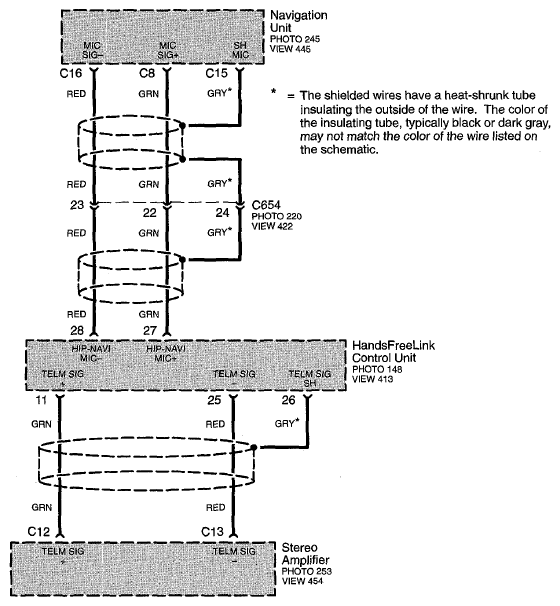

Fig 6: Audio System Circuit Diagram (Page 150-5)

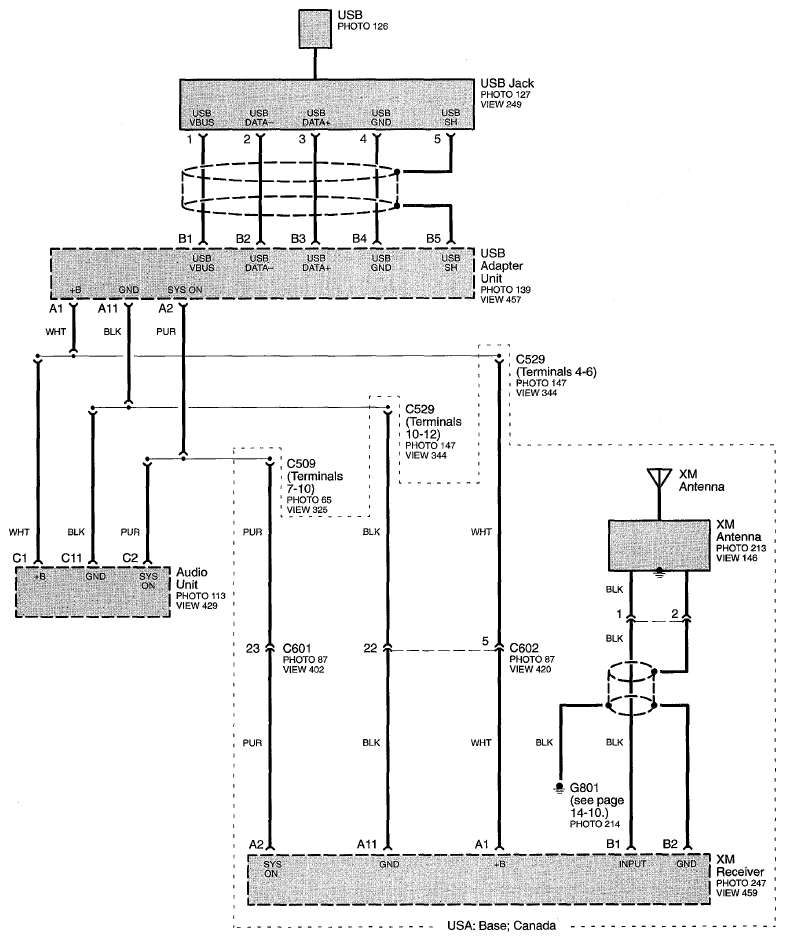

Fig 7: Audio System Circuit Diagram (Page 150-6)

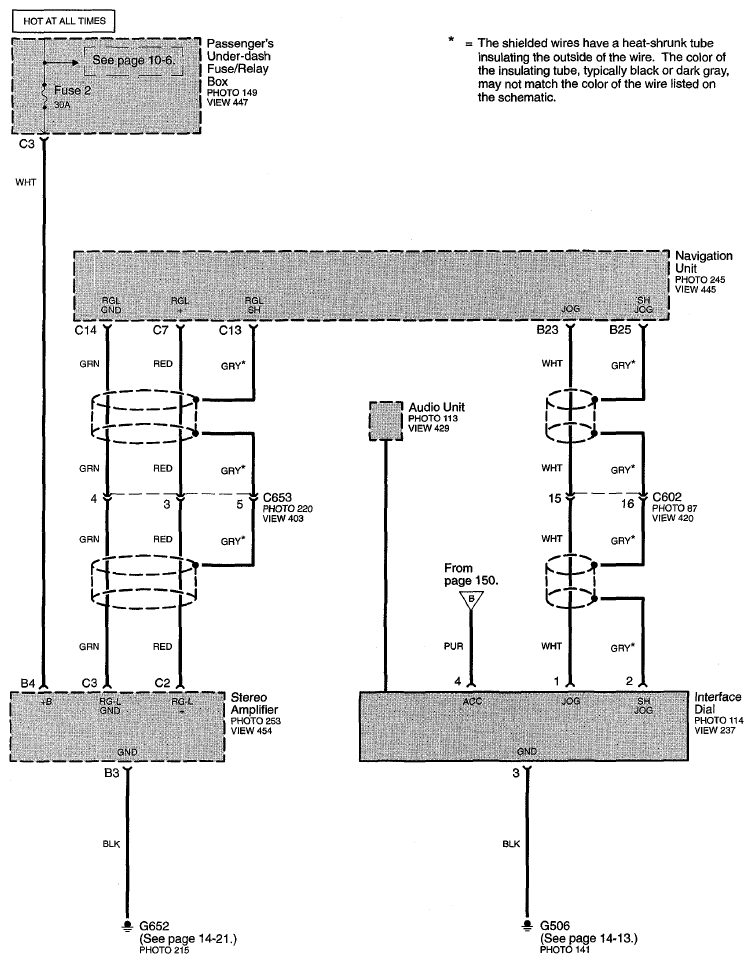

Fig 8: Audio System Circuit Diagram (Page 150-7)

Fig 9: Audio System Circuit Diagram (Page 150-8)

Fig 10: Audio System Circuit Diagram (Page 150-9)
