Charging System

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

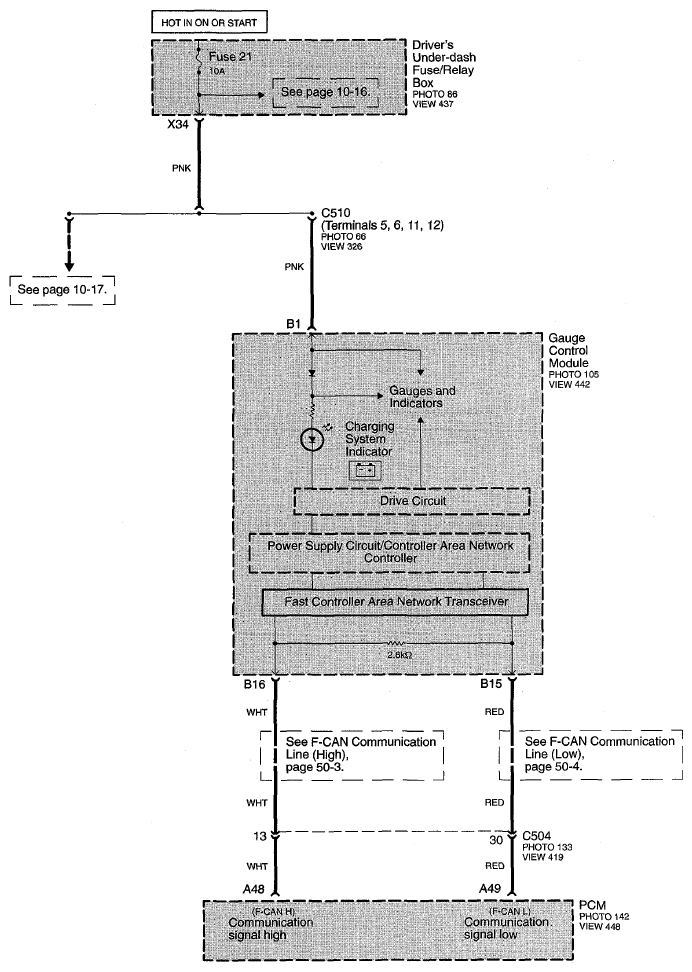

Fig 1: Charging System Circuit Diagram (Page 22)

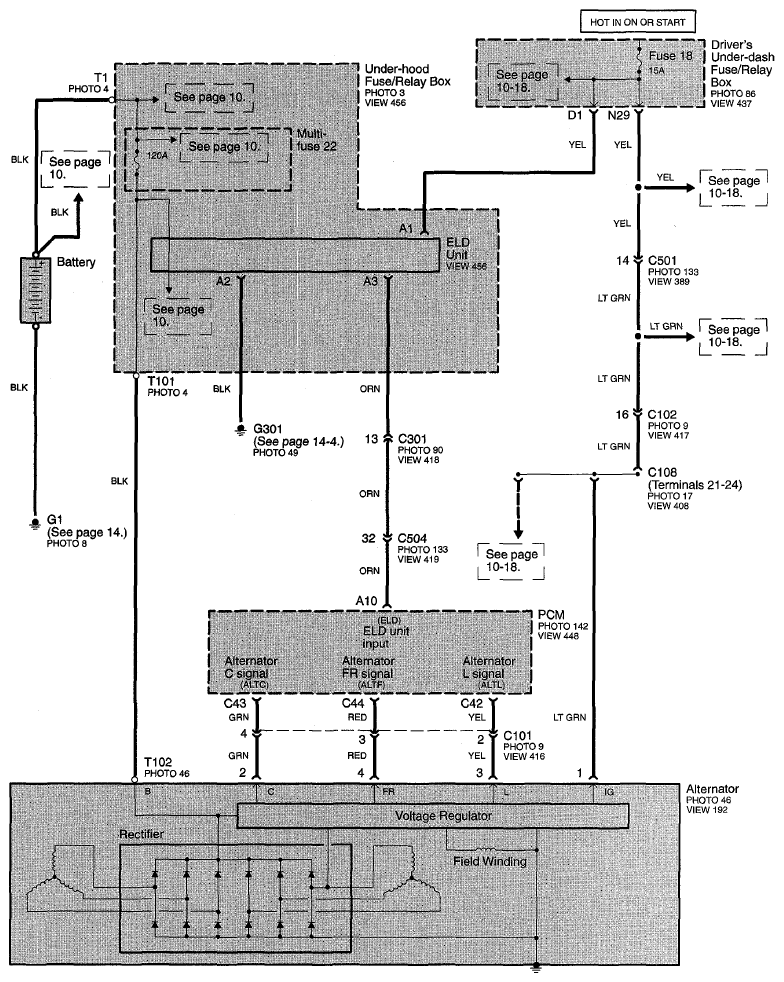

Fig 2: Charging System Circuit Diagram (Page 22-1)
