Entry Light Control System

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

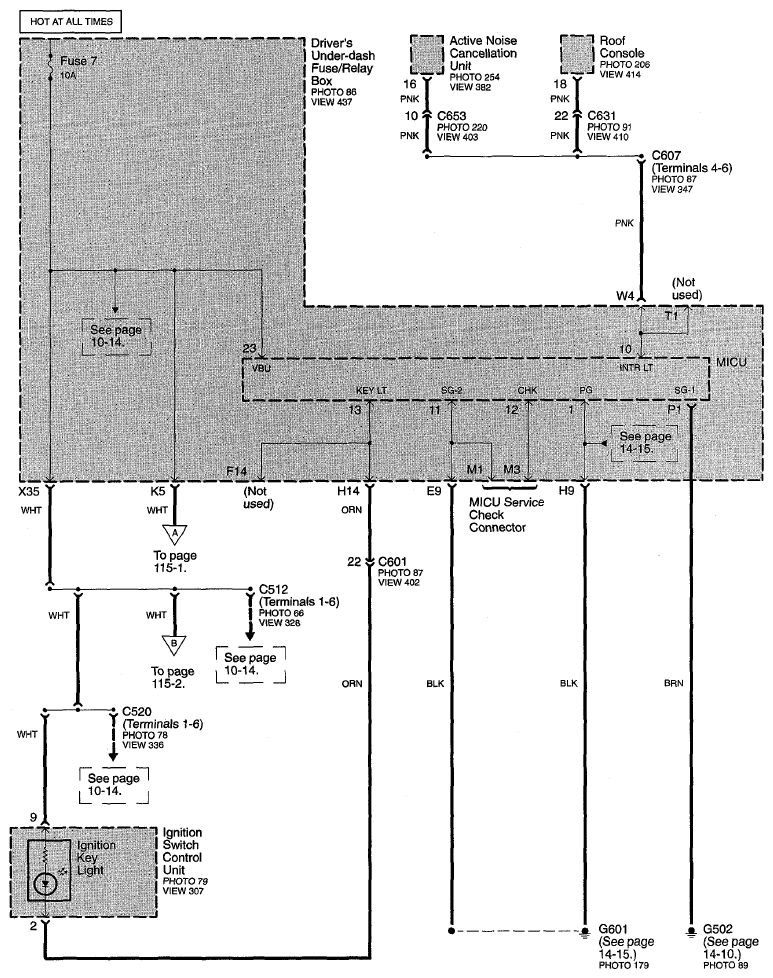

Fig 1: Entry Light Control System Circuit Diagram (Page 115)

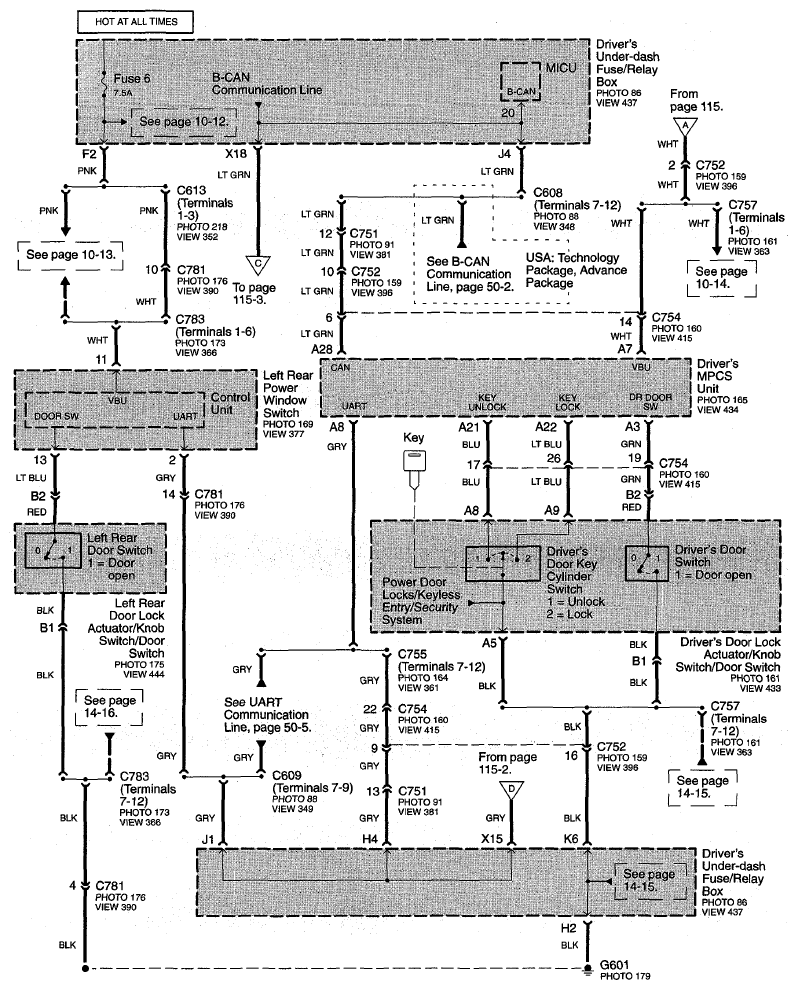

Fig 2: Entry Light Control System Circuit Diagram (Page 115-1)

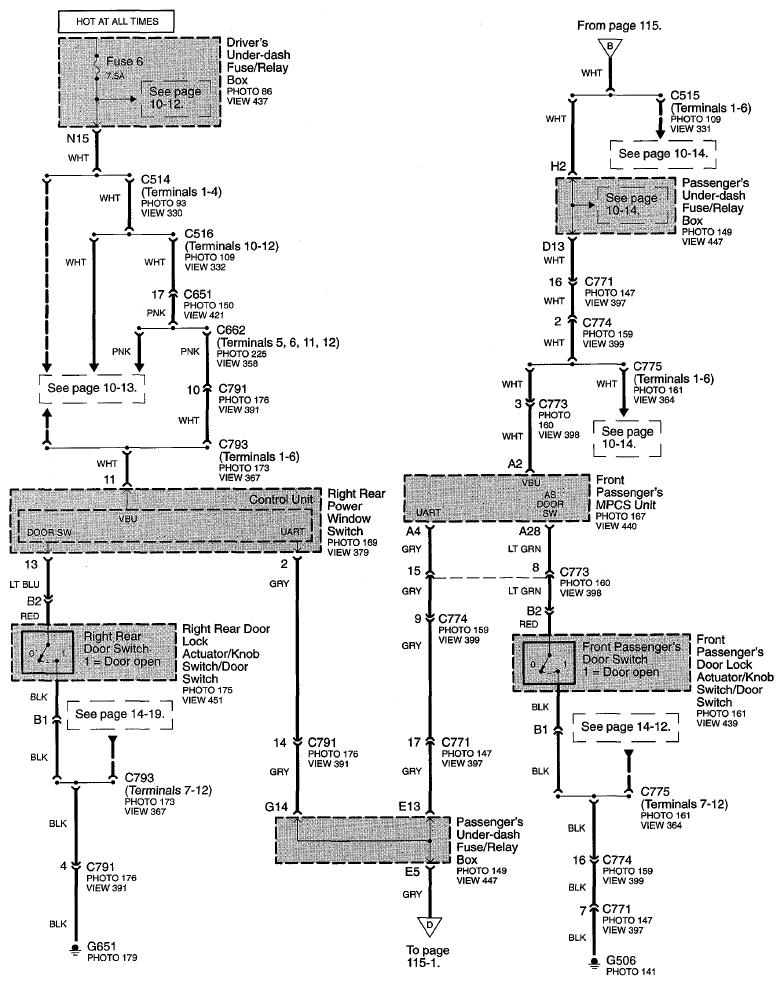

Fig 3: Entry Light Control System Circuit Diagram (Page 115-2)

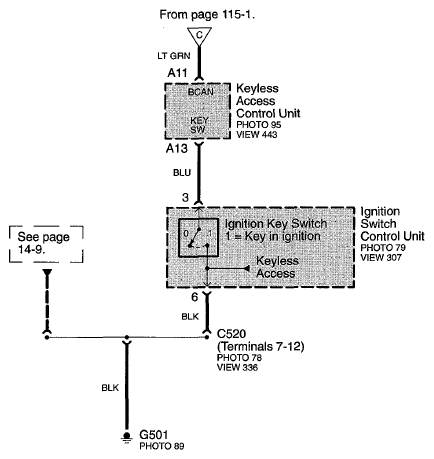

Fig 4: Entry Light Control System Circuit Diagram (Page 115-3)
