Immobilizer System: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

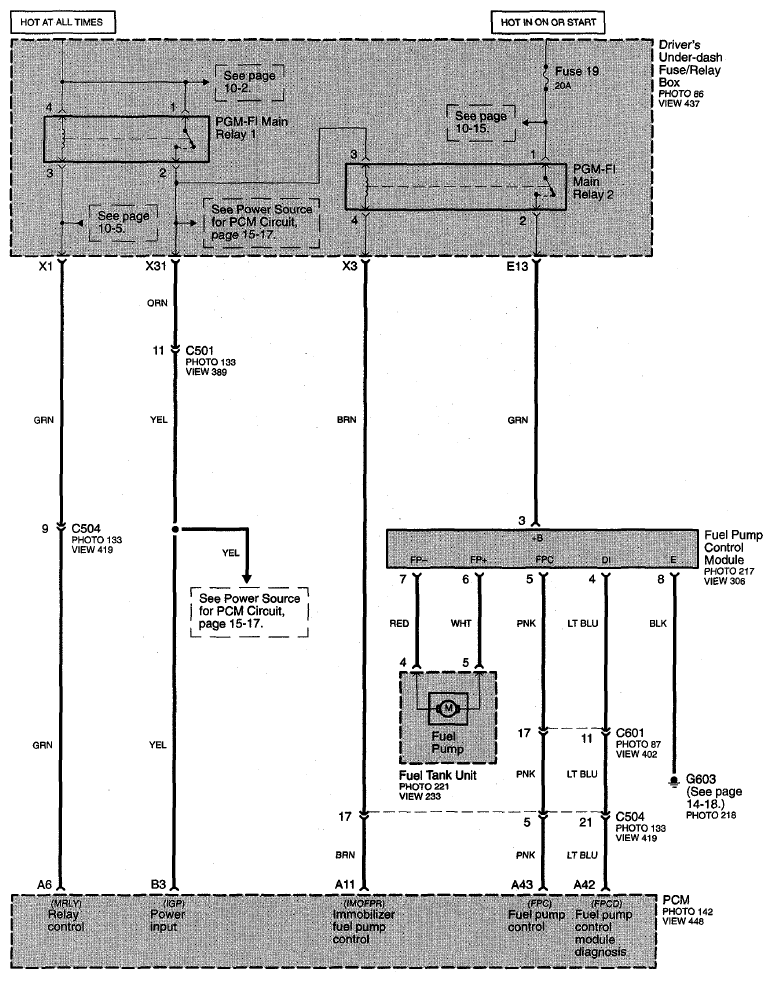

Fig 1: Immobilizer System Circuit Diagram (Page 132)

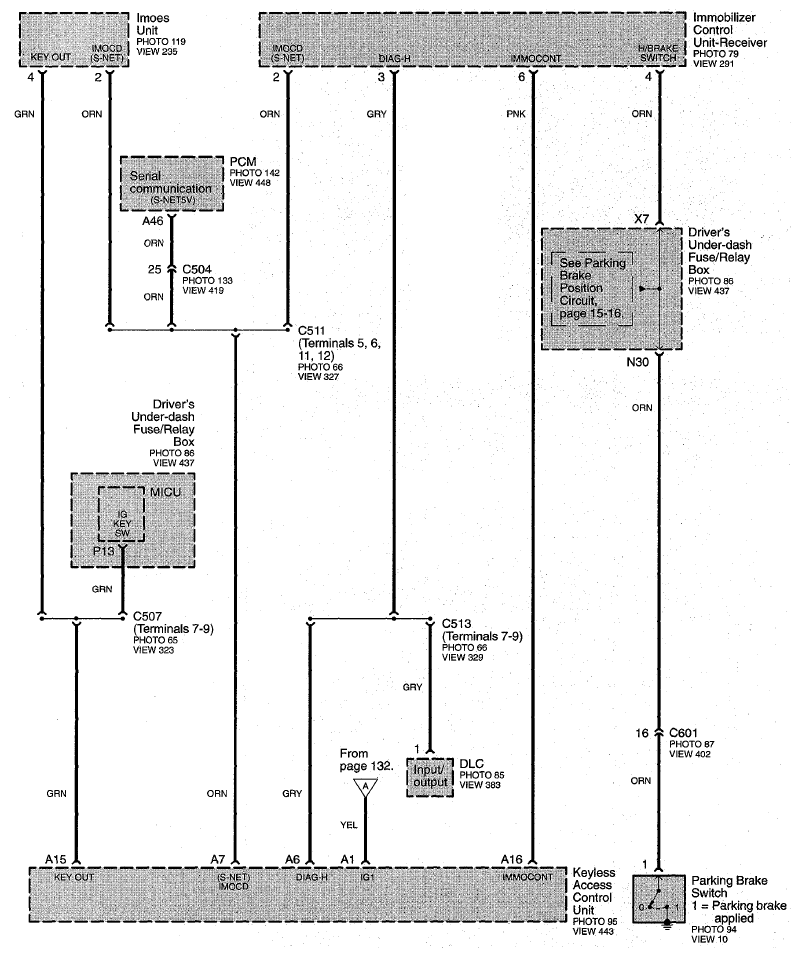

Fig 2: Immobilizer System Circuit Diagram (Page 132-1)

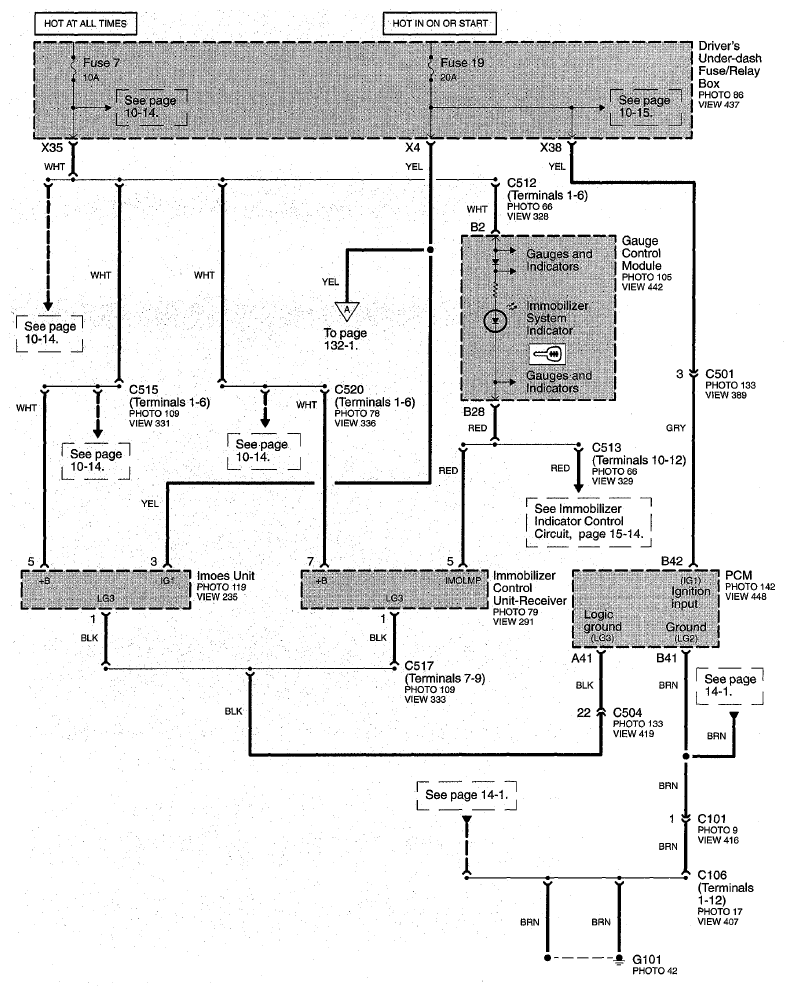

Fig 3: Immobilizer System Circuit Diagram (Page 132-2)
