Keyless Access System

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

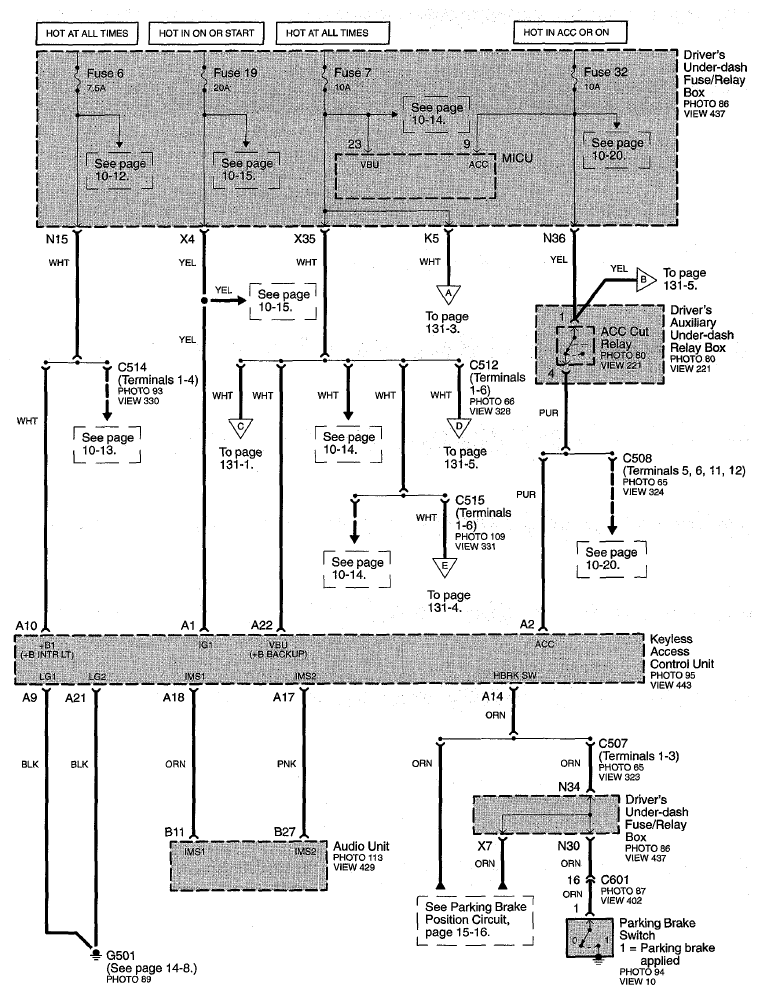

Fig 1: Keyless Access System Circuit Diagram (Page 131)

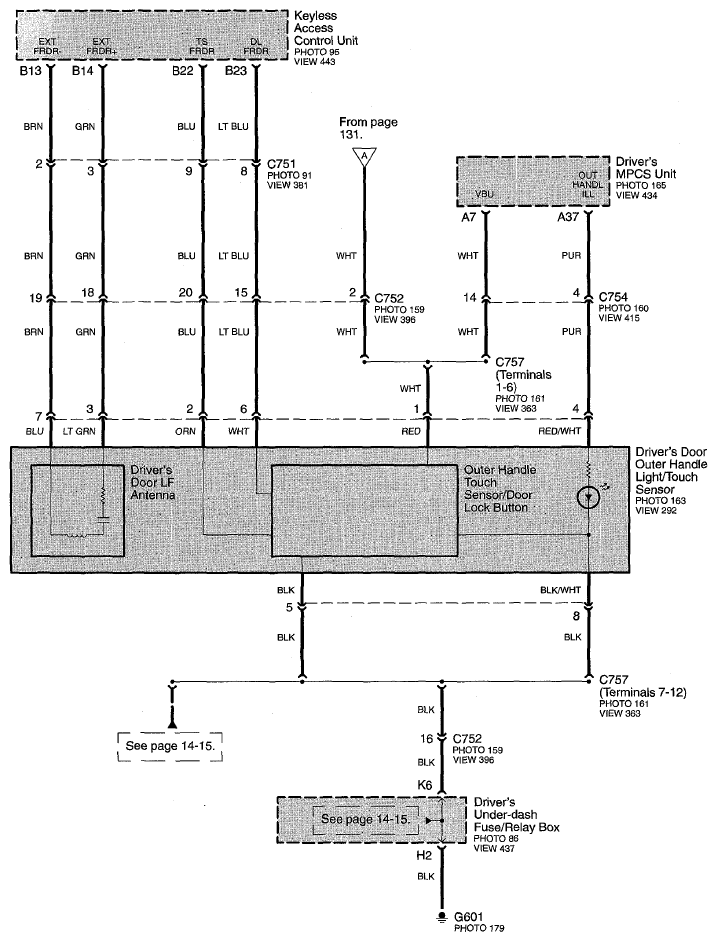

Fig 2: Keyless Access System Circuit Diagram (Page 131-1)

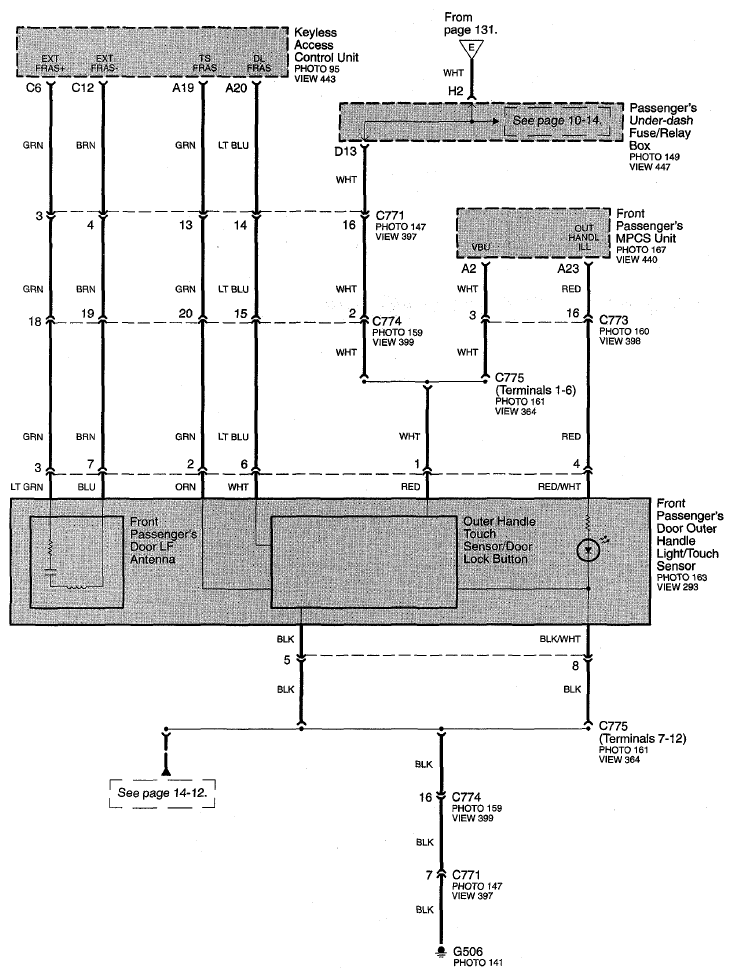

Fig 3: Keyless Access System Circuit Diagram (Page 131-2)

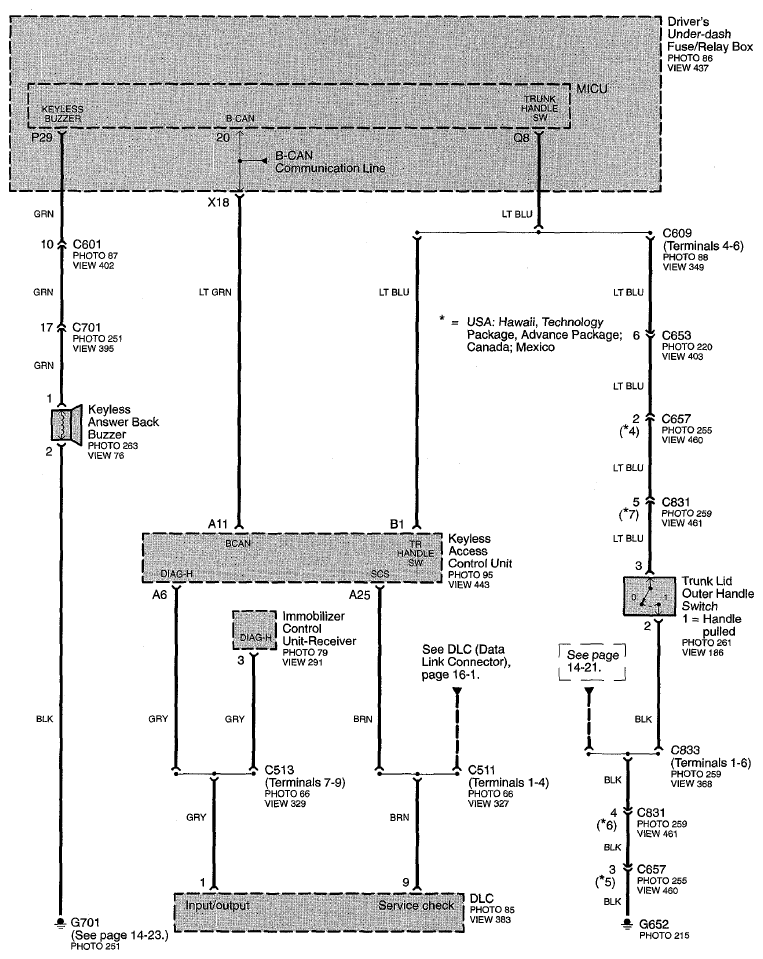

Fig 4: Keyless Access System Circuit Diagram (Page 131-3)

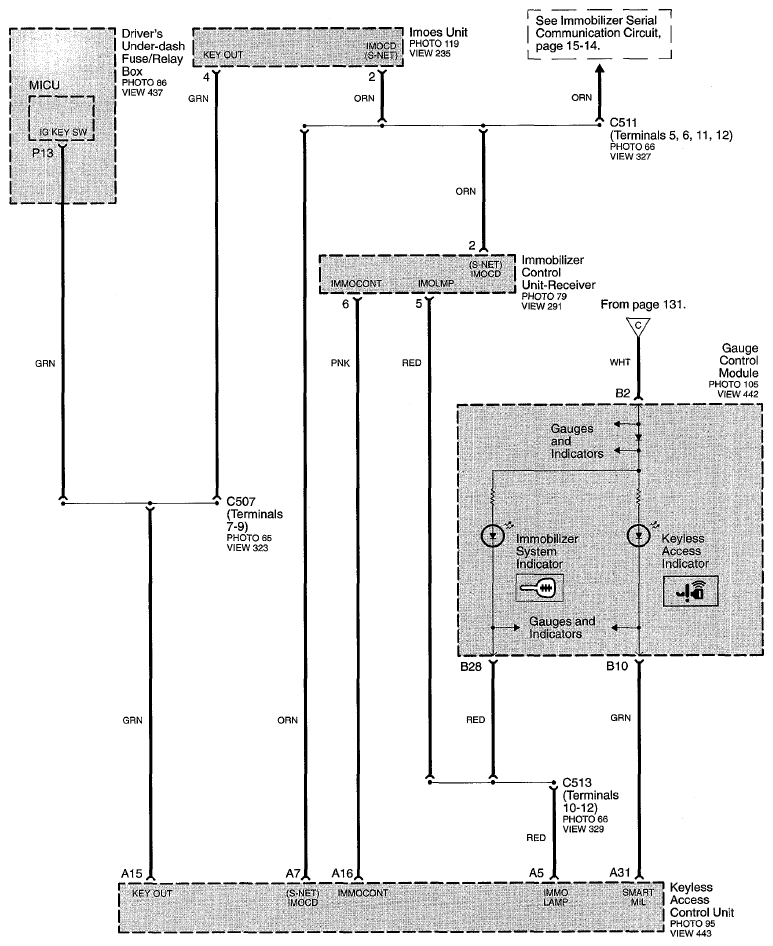

Fig 5: Keyless Access System Circuit Diagram (Page 131-4)

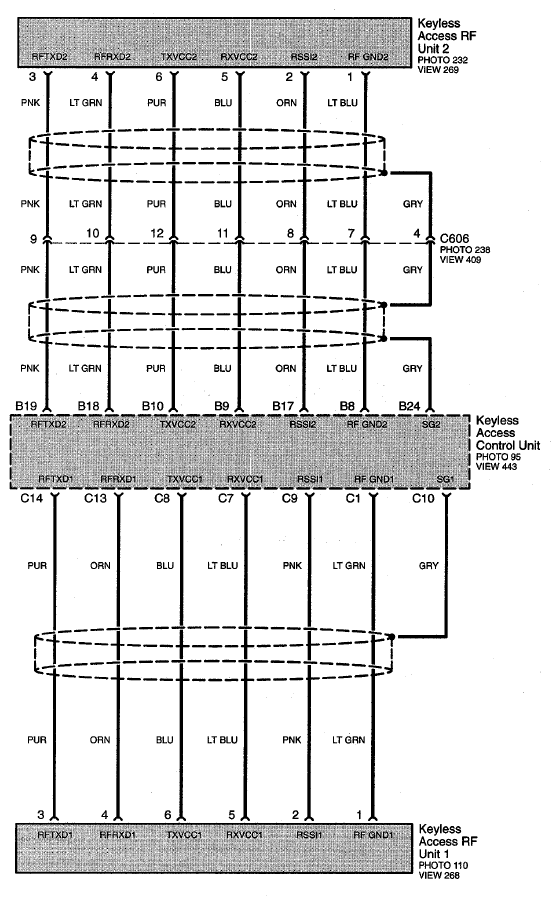

Fig 6: Keyless Access System Circuit Diagram (Page 131-5)

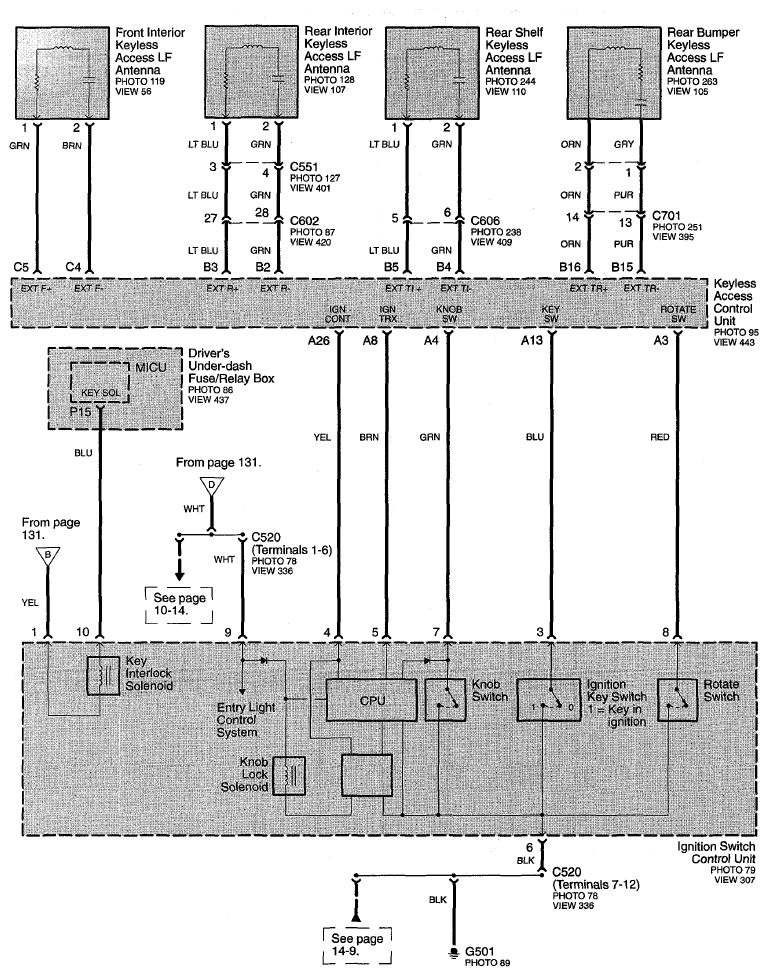

Fig 7: Keyless Access System Circuit Diagram (Page 131-6)
