OEM Circuit Diagrams: Moonroof: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

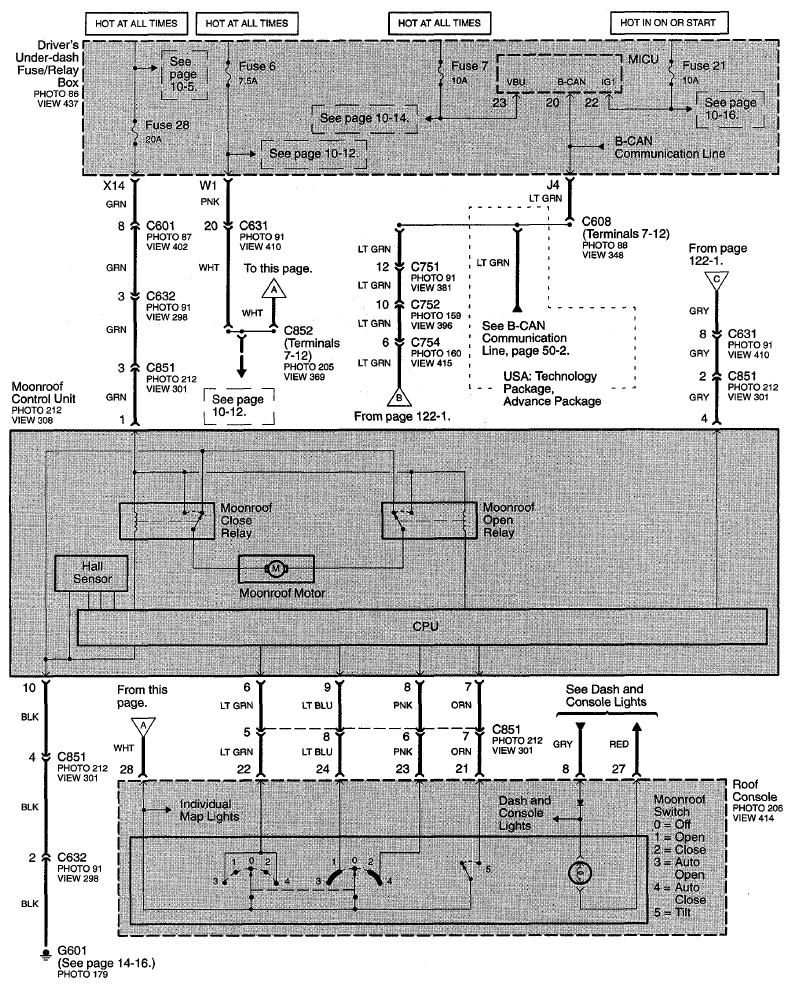

Fig 1: Moonroof Circuit Diagram (Page 122)

Fig 2: Moonroof Circuit Diagram (Page 122-1)
