F-CAN Communication Line (High)

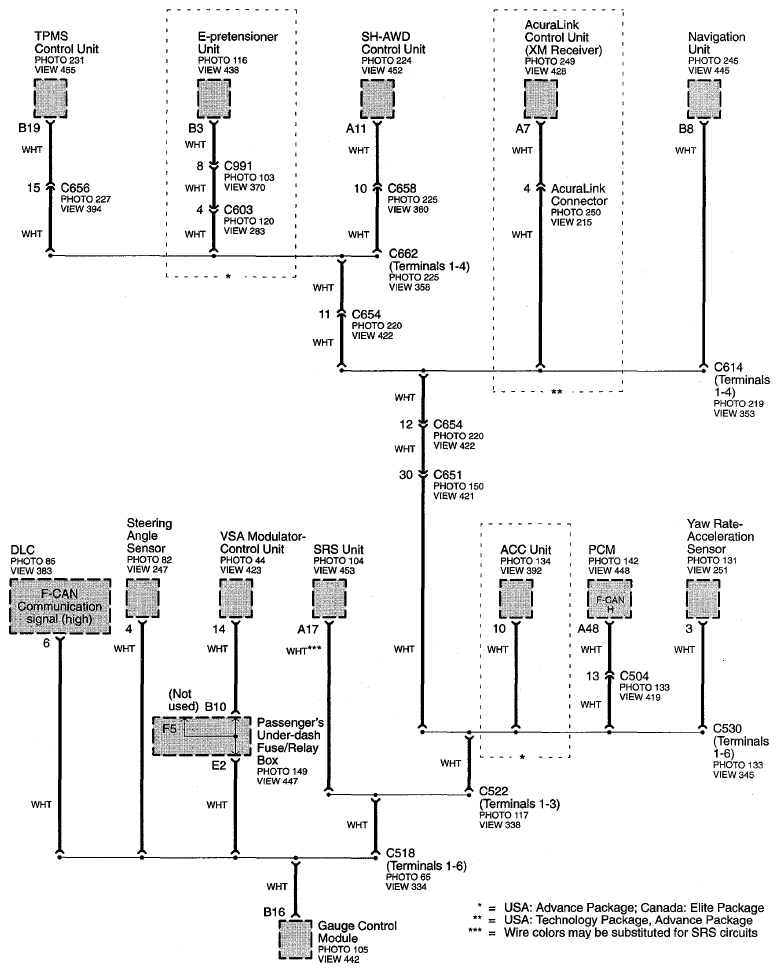

Fig 1: F-CAN Communication Line (High) Circuit Diagram (Page 50-3)
G07748226
