Multiplex Integrated Control System
›
GA-NET (USA: Technology Package, Advance Package)
GA-NET (USA: Technology Package, Advance Package)

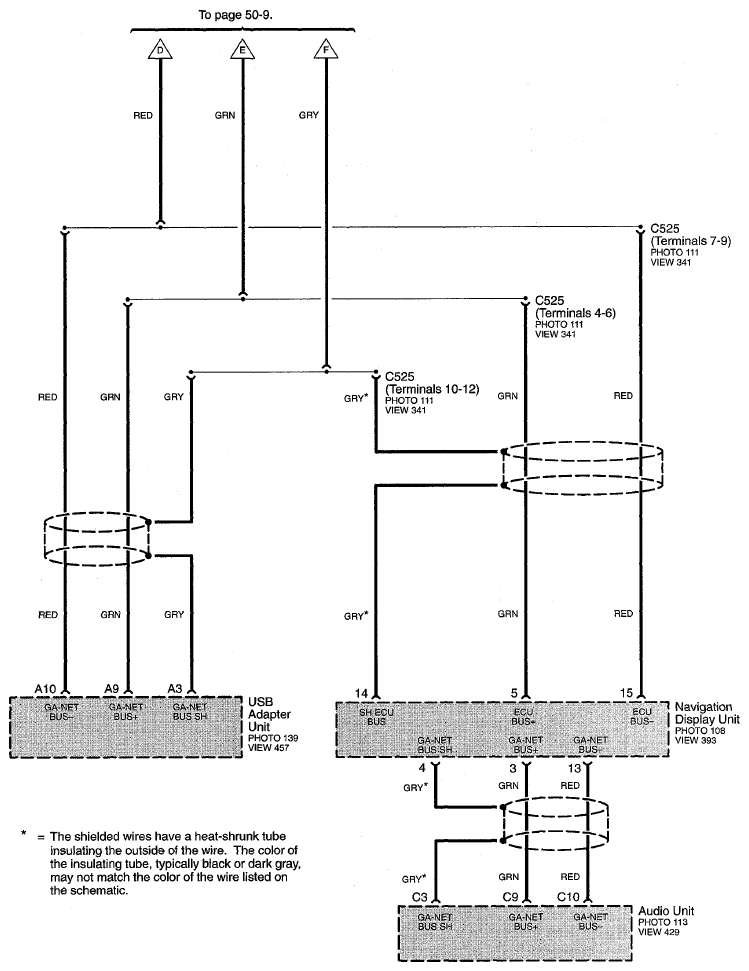

Fig 1: GA-NET (USA: Technology Package, Advance Package) Circuit Diagram (Page 50-8)

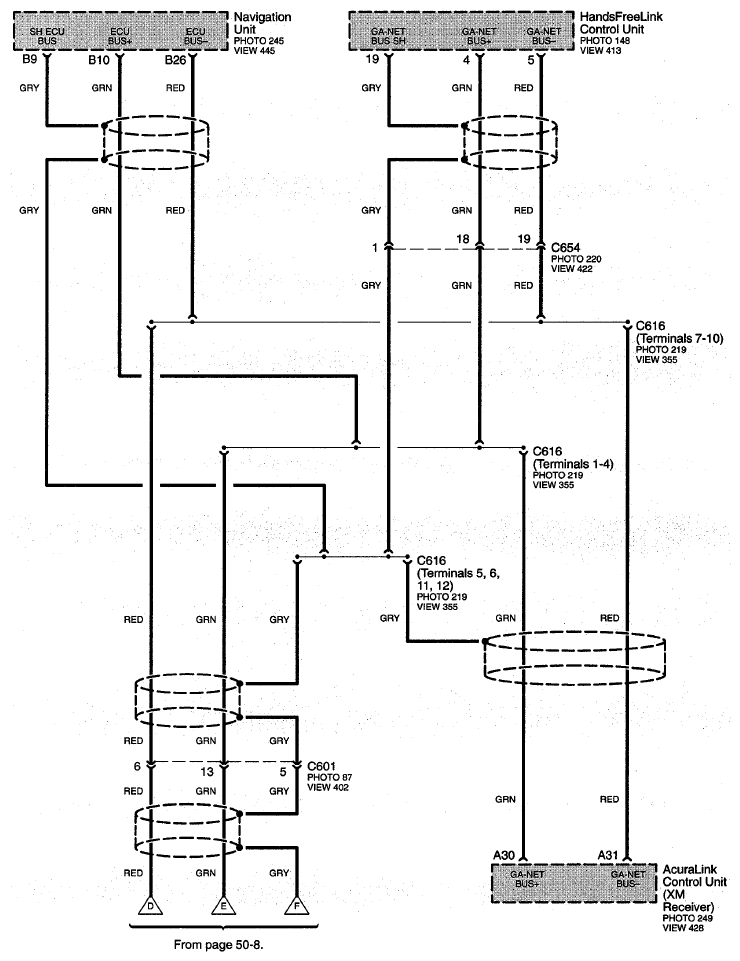

Fig 2: GA-NET (USA: Technology Package, Advance Package) Circuit Diagram (Page 50-9)
