OEM Circuit Diagrams
›
VTEC System
VTEC System
NOTE:
For connector or component location "PHOTO", see
OEM COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

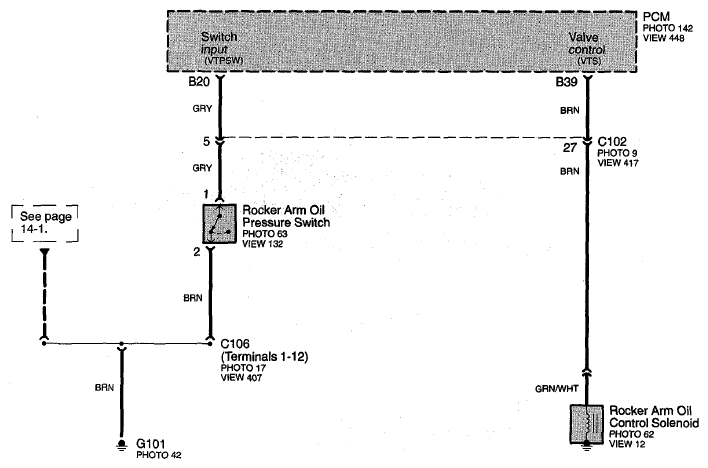

Fig 1: VTEC System Circuit Diagram (Page 31)
