OEM Circuit Diagrams: Wiper/Washer: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

Fig 1: Wiper/Washer Circuit Diagram (Page 91)

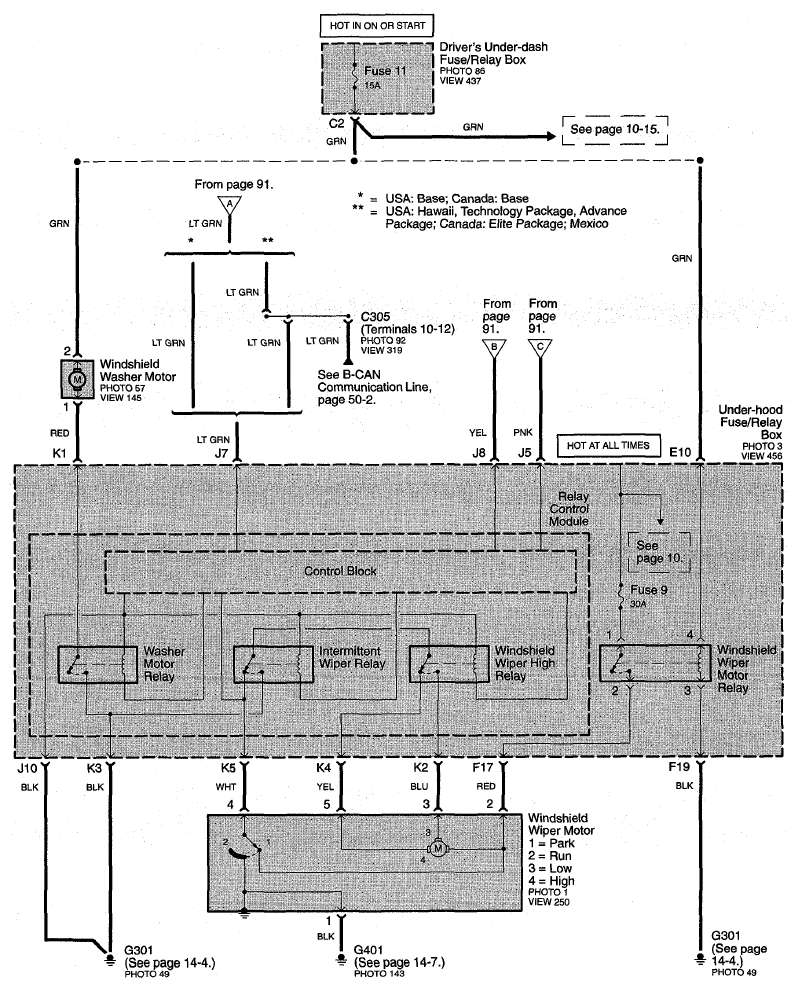

Fig 2: Wiper/Washer Circuit Diagram (Page 91-1)
