Drive Belt Auto-Tensioner Replacement

Remove the drive belt (see DRIVE BELT REPLACEMENT ).
Remove the splash shield (see SPLASH SHIELD REPLACEMENT )
Remove the auto-tensioner.

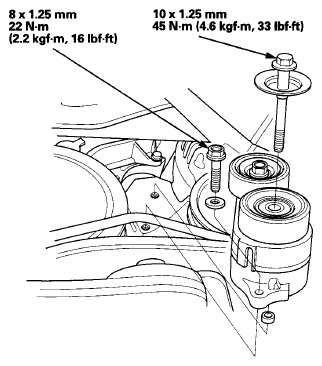

Fig 1: Auto-Tensioner With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
