Radiator Test
- Wait until the engine is cool, then carefully remove the radiator cap, and fill the radiator with engine coolant to the top of the filler neck.

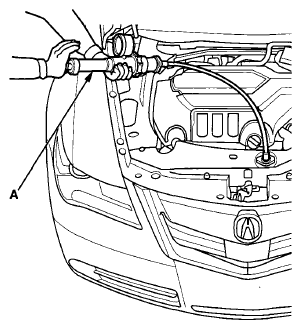

- Attach a commercially available pressure tester (A) to the radiator, and apply a pressure of 93-123 kPa (0.95-1.25 kgf/cm2 , 13.5-17.8 psi).
- Inspect for engine coolant leaks and a drop in pressure.
- Remove the tester, then reinstall the radiator cap.
