Lower Transmission Mount Removal and Installation: Installation

  1. Install the lower transmission mount (A), tighten the lower transmission mount mounting bolts (B).

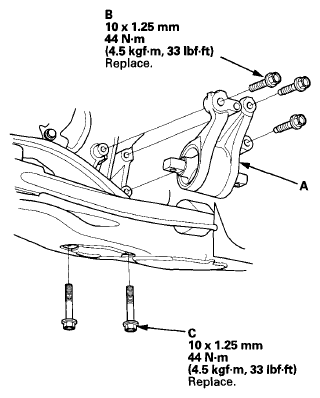

    Fig 1: Installing Lower Transmission Mount With Torque Specifications
    G07361688Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the transmission jack and the wood block.
  3. Install the lower transmission mount mounting bolts (C) to subframe side.
