Air Cleaner Removal/Installation

Remove the battery trim (see step 2 on UPPER FENDER TRIM REPLACEMENT ), and the left upper fender trim (see step 3 on UPPER FENDER TRIM REPLACEMENT ).
Disconnect the MAF sensor/IAT sensor connector.
Loosen the hose band (A) of the intake air duct.

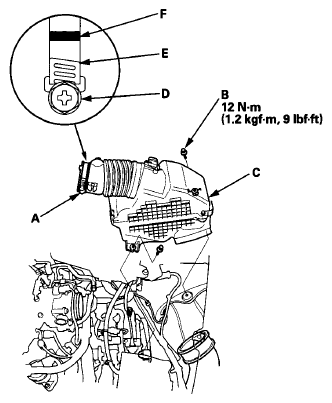

Fig 1: Disconnecting MAF Sensor/IAT Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B) and the air cleaner (C).
Install the parts in the reverse order of removal.

NOTE: When tightening the screw of the hose clamp (D), align the edge of the hose clamp (E) with the painted mark (F).
