Climate Control Unit Connector End View (View 425)

GRY
Behind climate control unit
On dashboard wire harness (center branch)

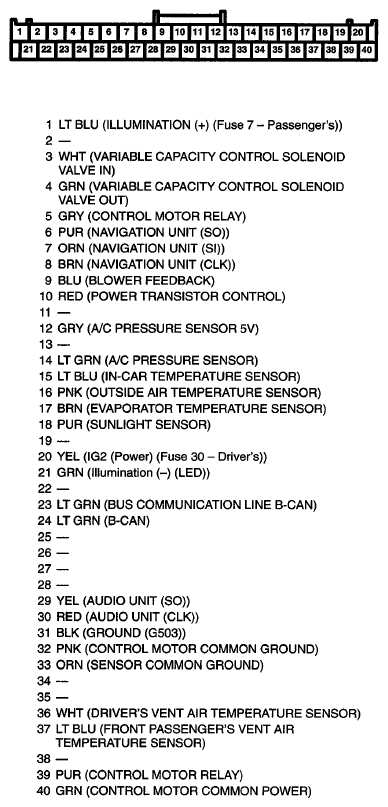

Fig 1: Climate Control Unit Connector Terminals (View 425)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
