Gauge Control Module Connector A Connector End View (View 442)
Gauge Control Module Connector A Connector End View (View 442)
GRY
Behind gauge control module
On dashboard wire harness (left branch)
Connector A

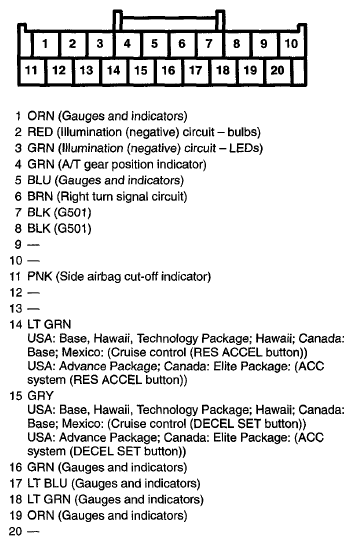

Fig 1: Gauge Control Module Connector A Terminals (View 442)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B

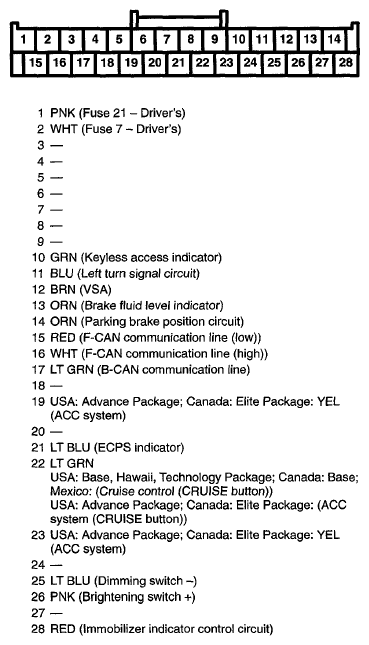

Fig 2: Gauge Control Module Connector B Terminals (View 442)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
